Product Details:
Payment & Shipping Terms:
|
| Product Type: | Non-Woven Tape | Thickness: | 0.15 Mm, Liner Excluded |
|---|---|---|---|
| Backing: | Non-woven Fabric | Peel Adhes: | 14.3 N/20 Mm To Stainless Steel |
| Flammability: | UL94 VTM-0 (File E52859) | Size: | 400 Mm Wide X 50 M |
| Peel To PP: | 1300 G/20 Mm | Peel To ABS: | 1350 G/20 Mm |
| Application: | Fixing Parts In Office Automation And Home Appliances |

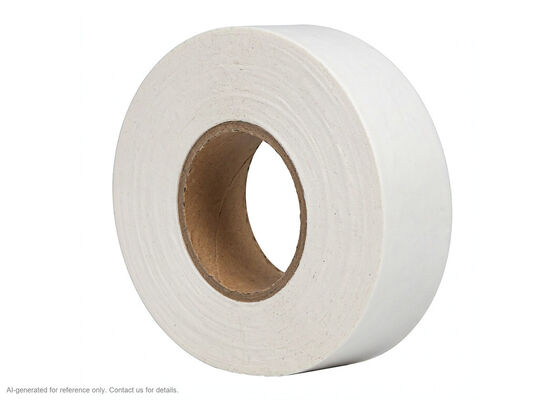

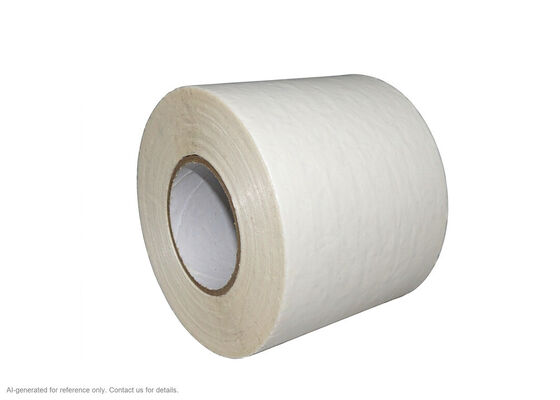

Nitto Denko No.5011N | 0.15 mm Non-Woven Core | Flame-Retardant Acrylic | UL94 VTM-0
Product Description
Nitto Denko No.5011N is a double coated tape built on a flame retardant non-woven fabric with flame retardant acrylic adhesive on both faces. It is listed to UL94 VTM-0. Initial tack comes up fast and the bond holds on rough surfaces, with low temperature workability that ordinary double coated tapes do not match, which suits foam lamination and interior trim fixing.
Structure
| Component | Material / Construction |
| Backing | flame-retardant non-woven fabric |
| Adhesive | flame-retardant acrylic on both faces |
| Release Liner | printed release liner |
Datasheet
| Property | Value |
| Tape thickness | 0.15 mm, liner excluded |
| 180° peel strength | 14.3 N/20 mm to stainless steel |
| Backing | non-woven fabric |
| Flammability | UL94 VTM-0 (File E52859) |
| Standard size | 400 mm wide x 50 m |
| Peel to stainless steel | 1380 g/20 mm |
| Peel to polypropylene | 1300 g/20 mm |
| Peel to ABS | 1350 g/20 mm |
| Peel to polystyrene | 1350 g/20 mm |
| Peel to F-2 foam | 350 g/20 mm |
| Peel to USM foam | 450 g/20 mm |
| Peel to UN-2 foam | 600 g/20 mm |
Features
Applications
