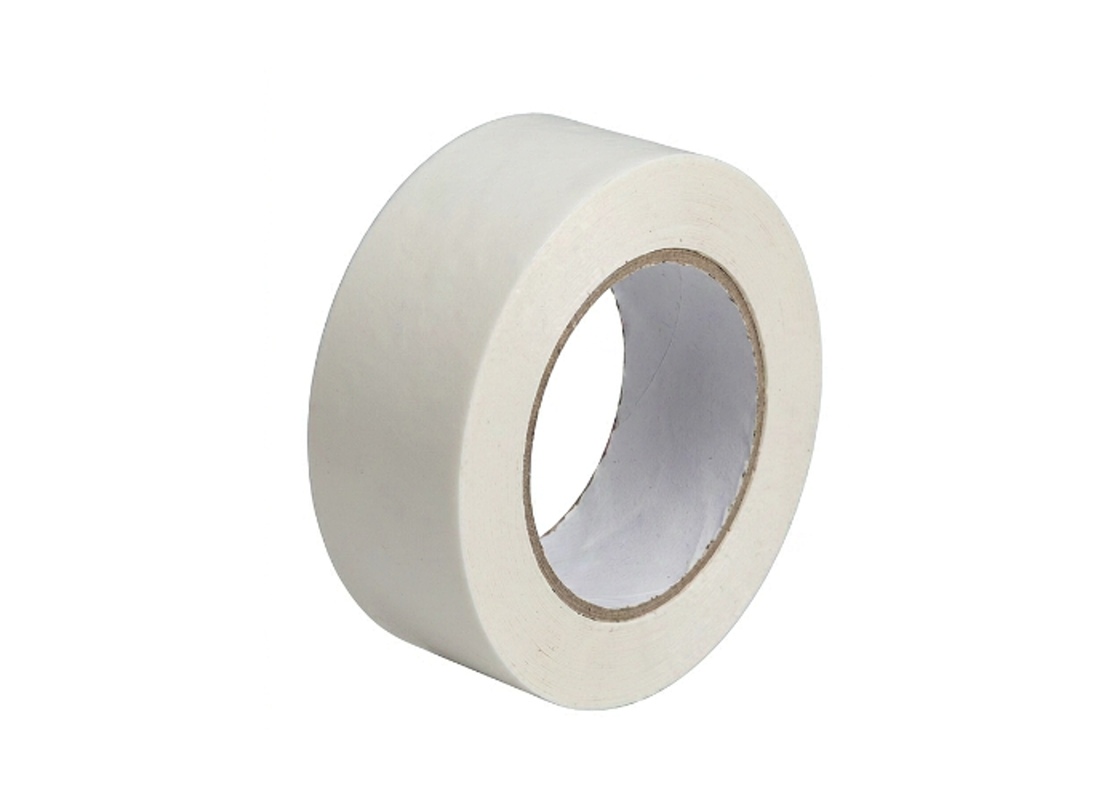

3M Scotch 69 | Glass Cloth | 0.18mm Thickness | White
Product Description
Scotch Glass Cloth Electrical Tape 69 is a 7 mil (0.178 mm) white glass cloth tape with a high temperature thermosetting silicone pressure-sensitive adhesive, rated 600 V in dry locations and Class 200 °C for motors, transformers and coil insulation.
Structure
|
Component |
Material / Construction |
|---|---|
| Backing (Carrier) | glass cloth 0.140 mm (5.5 mil) |
| Adhesive | thermosetting silicone PSA, non-corrosive, flame retardant |
| Release Liner | none |
Datasheet
| Total thickness 0.178 mm (7 mil) |
| Dielectric strength 3000 V |
| Insulation resistance 4.8 x 10⁴ megohms |
| Tensile strength 314 N/cm |
| Elongation 5% |
| UL 200 °C / CSA 180 °C |
| Electrolytic corrosion factor 1 |
| UL E17385, CSA LR93411, MIL-I-19166C |
