Product Details:
Payment & Shipping Terms:
|
| Product Type: | Glass Cloth Tape | Thickness: | 0.177 Mm |
|---|---|---|---|
| Temp Range: | 200 °C (Class N) | Tensile: | 314 N/cm |
| Elongation: | 5% | Steel Peel: | 4.4 N/10 Mm |
| Dielectric: | 3000 V | Insulation: | 4.8 × 10⁴ MΩ |
| Flammability: | UL 510 | Length: | 32.9 M |
| Backing Thk: | 0.125 Mm | Application: | Coil Cover And Banding On Motors |

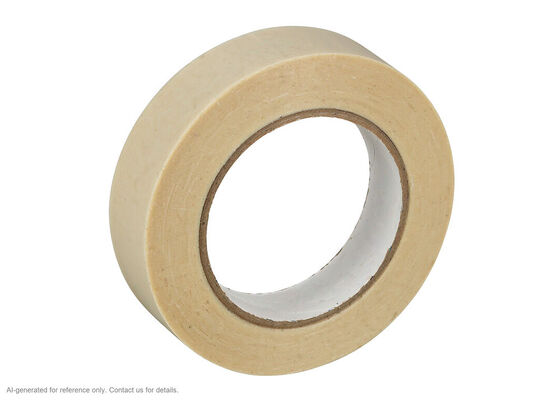

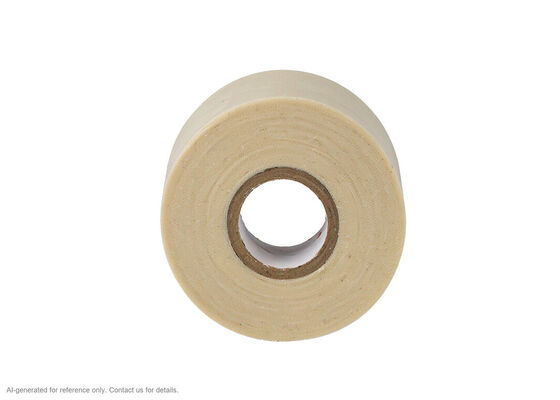

3M 69 | White Glass Cloth | 0.177 mm Total | Thermosetting Silicone | Class 200 °C
Product Description
Woven glass cloth forms the carrier of 3M Tape 69, which carries a thermosetting silicone adhesive and comes in white. Ratings cover 600 V in dry locations and Class N (200 °C), so motors and transformers are the natural home, varnished or not. Heat makes the adhesive grip harder rather than soften, and the cloth adds mechanical strength plus solvent resistance for coil covers, banding and layer insulation.
Structure
| Component | Material / Construction |
| Backing | white woven glass cloth, 0.125 mm |
| Adhesive | high temperature thermosetting silicone, non-corrosive |
| Release Liner | none – no separator between roll layers |
Datasheet
| Property | Value |
| Backing thickness | 0.125 mm |
| Total thickness | 0.177 mm |
| Adhesion to steel | 4.4 N/10 mm |
| Breaking strength | 314 N/cm |
| Elongation at break | 5% |
| Dielectric breakdown | 3000 V |
| Insulation resistance | 4.8 × 10⁴ MΩ |
| Operating temperature | 200 °C (Class N) |
| CTI material group | 1 |
| Electrolytic corrosion factor | 0.9 |
| Flame retardant | UL 510 |
| Standards | UL Recognised (Guide OANZ2, File E17385), CSA 180 °C (File LR93411), Mil-I-19166C, RoHS compliant |
| Standard length | 32.9 m |
| Shelf life | 5 years |
