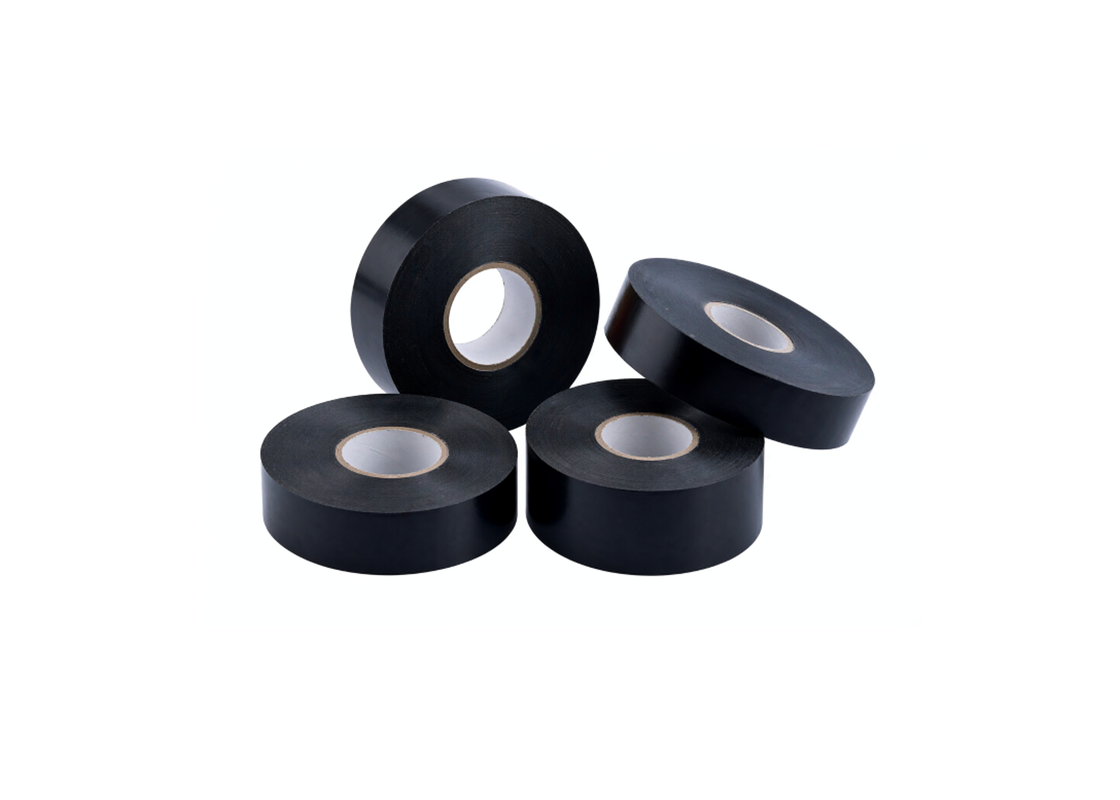

3M Scotch 88 | Vinyl Electrical | 0.22mm Thickness | Black
Product Description
Scotch Vinyl Electrical Tape Super 88 is a premium 8.5 mil (0.216 mm) all-weather black PVC electrical tape with an aggressive rubber-resin adhesive, providing primary insulation and a protective jacket for splices up to 600 V (UL) / 1000 V (CSA).
Structure
|
Component |
Material / Construction |
|---|---|
| Backing (Carrier) | elastic PVC (vinyl) film 0.216 mm (8.5 mil) |
| Adhesive | non-corrosive rubber-resin PSA |
| Release Liner | none |
Datasheet
| Thickness 0.216 mm (8.5 mil) |
| Adhesion to steel 28 oz/in (3.0 N/10 mm) |
| Tensile strength 17.8 lb/in (31.2 N/cm) |
| Elongation 225% at 23 °C |
| Dielectric strength 1000 V/mil |
| -18 to 105 °C |
| UL 510, CSA C22.2 No.197, IEC 60454-3-1 Type 7 |
Features
Applications
