3M Scotch 2228 | Self-Fusing | Rubber | Insulating | Sealing

Product Description

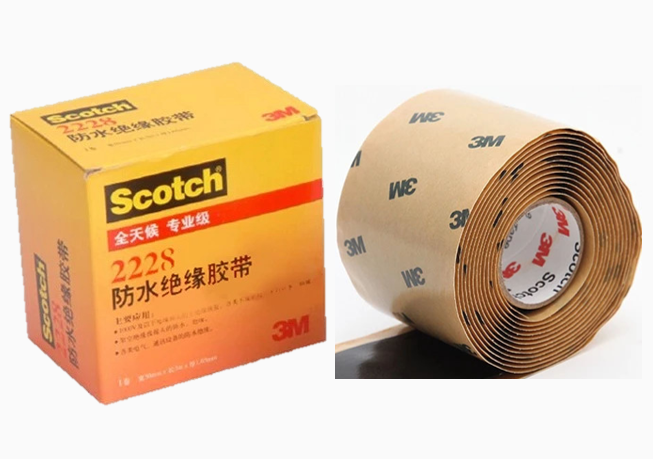

Scotch 2228 is a thick, self-fusing rubber insulating/sealing tape: an ethylene propylene rubber (EPR) backing coated with a temperature-stable mastic adhesive on a release liner, 65 mil/1.65 mm thick, black. When stretched and half-lapped it fuses into a seamless mass for primary insulation, moisture/water sealing, UV resistance and padding over irregular shapes. It is used on copper/aluminum joints and motor leads up to 1000 V primary insulation, and bus-bar primary insulation up to 35 kV; conductor continuous 90°C, UL-recognized component/emergency overload to 130°C, indoor and weather-exposed outdoor.

Structure

Features

• 1.65 mm thick self-fusing build.
• EPR + mastic dual structure.
• High conformability on irregular shapes.
• Wide primary-insulation rating.
• Copper/aluminum/solid-dielectric compatible.
• 90°C continuous / 130°C emergency.
• Lined, non-mess storage.

Applications

• LV cable splices/terminations.
• Motor-lead insulation and padding.
• Bus-bar/riser joints.
• Outdoor tap/junction boxes.
• Solid-dielectric cable systems.
• Cable-end/cut-off moisture seal.
• Sharp lugs/multi-core branches.
• Emergency insulation repair.
