Thermal Conductive Pad with Silicone for Multifarious Heat Transfer

China Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer supplier
Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer supplier Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer supplier Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer supplier Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer supplier

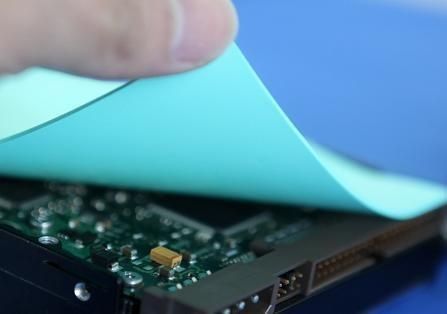

Large Image :  Thermal Conductive Pad with Silicone for Multifarious Heat Transfer

Product Details:

Place of Origin: CHINA
Brand Name: AERCHS
Certification: ROHS/UL/COC/COA/SGS
Model Number: CTP001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: $0.1-$95.0/Pieces
Packaging Details: Carton + Protective film
Delivery Time: 5-8 business days
Payment Terms: Western Union, Paypal , T/T, D/A, L/C, MoneyGram
Supply Ability: 100000 SQM/ Month
Contact Now
Detailed Product Description
Item: Thermal Conductive Pad Color: Different
Hardness: 20~60 Shore C Density: 2.98±0.2 G/cm3
Thermal Conductivity: 3.0 W/m.k

Thermal Conductive Pad with Silicone for Multifarious Heat Transfer



Description

THERMAL SILICONE PAD is a high-resilience, cost-effective thermal joint filler gasket. The material itself has certain flexibility and double-sided self-adhesive. It is used to fill the gap between the heat-generating part and the heat sink or metal casing. Thermal conductivity and insulation, stable operation from -40 ° C to 200 ° C, it meet the UL94V0 flame retardant grade requirements.





Features

Thermal conductivity: 3.0W/m.k

Double-sided self-adhesive, highly conformable

High performance electrical insulation

Wide range of environmental adaptability



 Application

Power module

LCD

LED

Heat sink

High speed memory storage module



Thermal Conductive Pad with Silicone for  Multifarious Heat Transfer



Physical Characteristics Standard Values
Color Different
Hardness 20~60 Shore C
Density 2.98±0.2 g/cm3
Tearing Strength 0.38 KN/m
Breakdown Voltage ≥4 KV
Volume Resistance 1.1×1016 Ω.cm
Thermal conductivity 3.0 W/m.k
