Product Details:
Payment & Shipping Terms:
|
| Product: | Green PET Lithium Battery Terminal Tape | Backing: | PET Film |
|---|---|---|---|
| Adhesive: | Acrylic | Color: | Green |
| Thick: | 0.03mm | Temperature Resistance: | -20°C-130°C |
| Breakdown Voltage: | 3 (KV) | ||
| Highlight: | electrical adhesive tape,high voltage electrical insulating tape |
||

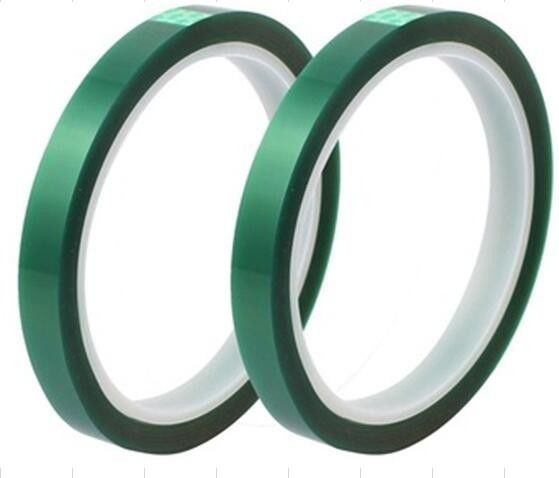

Insulation protection Green PET tape use for lithium battery terminal tape
Description:
Lithium battery tape is made of PET film with acrylic adhesive tape, which is widely used in lithium battery insulation protection, binding and fixation.
Feature:
Acrylic adhesive
Tape surface cleanliness, good toughness
High temperature, solvent resistant, stable and reliable
Adhesion is moderate, no residual glue
Unwinding force is moderate, suitable for different process requirements
Datasheet:
| Lithium battery tape | TE2010C3A |
| Backing | PET Film |
| Backing Thickness(mm) | 0.02mm |
| Total Thickness(mm) | 0.03mm( customization) |
| Length(m) | 100m |
| Adhesive | Acrylic |
| Color | Green |
| Tensile Strength(N/25mm | 55 |
| Peel Strength to steel (N/25mm) | 4±1 |
| Breakdown Voltage(KV) | 3 |
| Temperature Resistance | -20°C-130°C |
| Resistance of the electrolycte | Pass |
| Elongation | ≥30% |
Application:
Lithium battery insulation tape for cylindrical, square and other lithium-ion batteries core ears of the insulation protection and fixation.
Special for Lithium,Nicke land Cadmium .Aluminum shell/ steel shell/Soft package pool electrode anode protection and batteries end parts’ insulation fixed
FAQ:
1: Q: Are you a factory or trading company?
We are a factory. We are manufactory more than 22 years experiences in Insulation material industry.
2. Q: Which certification do you have?
A: Our products passed ISO9001-2008,Rohs,SGS certification,you can enter European,American market favorable.
3. Q: How can I get some samples?
A: For the test sample we can offer you free, but you need pay for the express fee. We also can accept small order at the first cooperation and make production after you paying for us.
