3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive

China 3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive supplier
3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive supplier 3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive supplier 3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive supplier 3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive supplier

Large Image :  3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive

Product Details:

Place of Origin: China
Brand Name: 3M
Certification: UL
Model Number: 3M 1350F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Negotiable
Delivery Time: 3-5 working days
Payment Terms: TT, Paypal , Western Union
Supply Ability: 20K square meter
Contact Now
Detailed Product Description

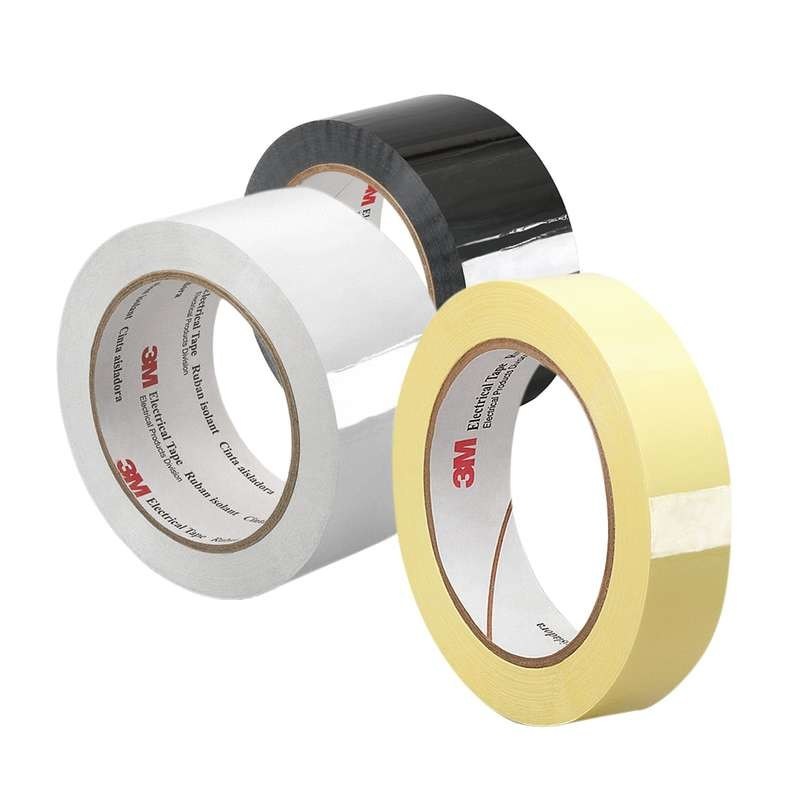

Product: Polyester Electrical Insulation (Mylar) Tape Color: Black/Yellow/White
Adhasive: Acrylic Thickness: 0.063mm/0.088mm
Temperature Resistance: 130°C Adhesion To Steel: 30 Oz/in(3.3N/10mm)
Dielectric Breakdown: 5500 Volts To 7000Volts

3M 1350F Flame Retardant Mylar Tape with Polyester Film and Acrylic Adhesive
Description:
3M 1350F Polyester Mylar Electrical Insulation Tape, polyester film coated acrylic adhesive

Feature:
3M 1350F Tape is an electrical insulating polyester film tape which meets the flame retardant requirement of UL. UL Recognized Insulation Systems and has a UL 130°C temperature rating.
It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment

Datasheet:
Product Electrical Insulation (Mylar) Tape
Backing Polyester film
Adhesive Acrylic
Color White, Black, Yellow
Thickness 0.063mm /0.088mm
180° Peel Adhesion 35oz/in – 10N/25mm
Dielectric  Breakdown 5500 Volts to 7000Volts
Temperature Resistance 130°C
Adhesion to Steel  30 oz/in(3.3N/10mm)
Elongation ≥70%

Application:

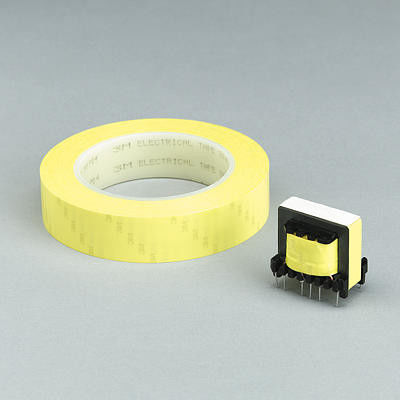

3M 1350F Tape is especially suited for applications such as wrapping coils, capacitors, wire harnesses transformers,shaded pole motors and fractional horsepower motors.
3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive
3M 1350F Electrical Insulation Tape , Flame Retardant Mylar Tape With Polyester Film And Acrylic Adhesive
