Product Details:
Payment & Shipping Terms:
|
| Product Name: | 3M 1350 Flame Retardant PET/Polyester Film Tape For Transformer And Motor | Color: | 10 Colors |
|---|---|---|---|
| Thickness: | 0.063 & 0.083 | Size: | Customized |
| Length: | Customized | Application: | Motor, Transformer |
| Temperature: | 130℃ | Adhesion: | Customized |
| Highlight: | electrical adhesive tape,high voltage electrical insulating tape |
||

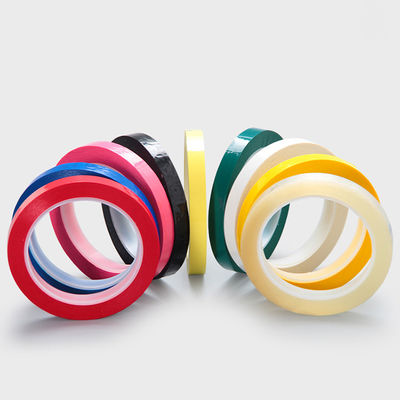

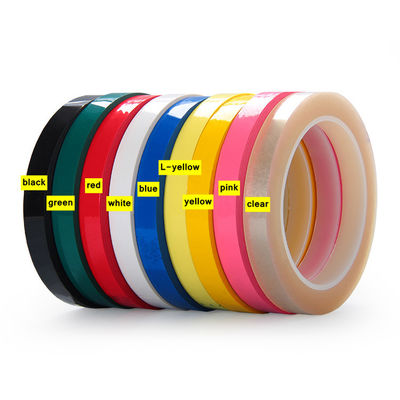

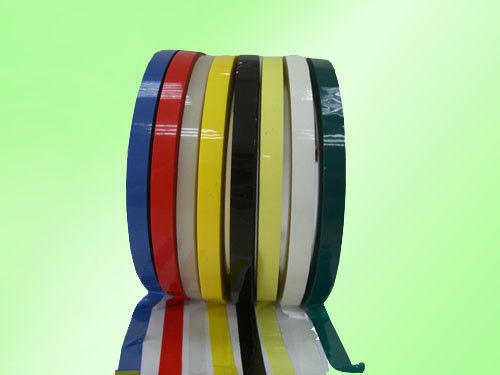

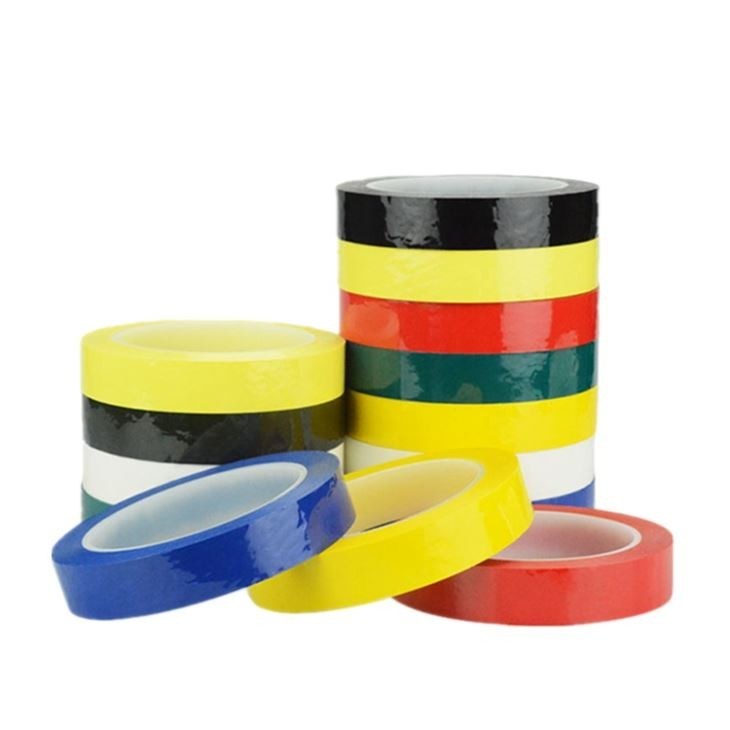

3M 1350 Flame Retardant PET/Polyester film tape for transformer and motor
Product Description
3M 1350 Tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510. It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating. It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.
Structure
Specification
| Typical Properties | 1 mil Film | 2 mil Film |
| Adhesive | Acrylic | Acrylic |
| Total thickness | 2.5 mils (0.063mm) | 3.3 mils (0.083m) |
| Temperature | 130℃ (266) | 130℃ (266) |
| Dielectric Breakdown | 5500 Volts | 7000 Volts |
| Adhesion to Steel | 3.3N / 10mm | 3.3N / 10mm |
| Elongation | 100% | 100% |
| Breaking Strength | 44N/10mm | 88N/10mm |
Application
