Product Details:
Payment & Shipping Terms:
|
| Product Type: | Label Facestock | Temp Range: | -40 °C To 149 °C |
|---|---|---|---|
| Liner Thk: | 0.081 Mm (3.2 Mil) | Adhesive Thk: | 0.046 Mm (1.8 Mil) |
| Humidity: | 24 H At 38 °C And 100% RH With No Significant Change | Print Method: | Thermal Transfer, Resin Ribbon Recommended |
| App Temp: | 10 °C | Application: | Barcode Labels And Rating Plates |

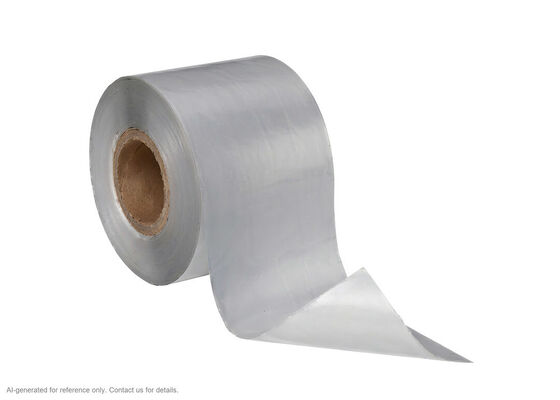

3M 7879 | Silver Matte Polyester 0.084 mm | Acrylic 350 | -40 to 149 °C | Thermal Transfer
Product Description
3M Thermal Transfer Label Material 7879 is a silver matte polyester labelstock aimed at identification work that has to survive. The 0.084 mm polyester facestock sits under a matte topcoat that accepts thermal transfer printing with resin ribbons while shrugging off scuffing, chemicals and moisture. Behind it is 3M High Performance Acrylic Adhesive 350, which takes hold on HSE and LSE plastics, powder coatings, contoured parts and lightly oiled metal.
Structure
| Component | Material / Construction |
| Backing | silver matte polyester facestock with TT TC topcoat, 0.084 mm |
| Adhesive | 3M High Performance Acrylic 350, 0.046 mm |
| Release Liner | 55# densified kraft paper, 0.081 mm |
Datasheet
| Property | Value |
| Facestock thickness | 0.084 mm (3.3 mil) |
| Adhesive thickness | 0.046 mm (1.8 mil) |
| Liner thickness | 0.081 mm (3.2 mil) |
| Adhesive coat weight | 2.70 to 3.24 g/100 in² |
| 180° peel adhesion after 72 h | 10.5 N/cm to stainless steel, 10.3 N/cm to PC, 9.1 N/cm to PP (ASTM D3330) |
| Liner release | 5 to 70 g/2 in (TLMI) |
| Service temperature | -40 °C to 149 °C |
| Minimum application temperature | 10 °C |
| Humidity resistance | 24 h at 38 °C and 100% RH with no significant change |
| Printing method | thermal transfer, resin ribbon recommended |
Features

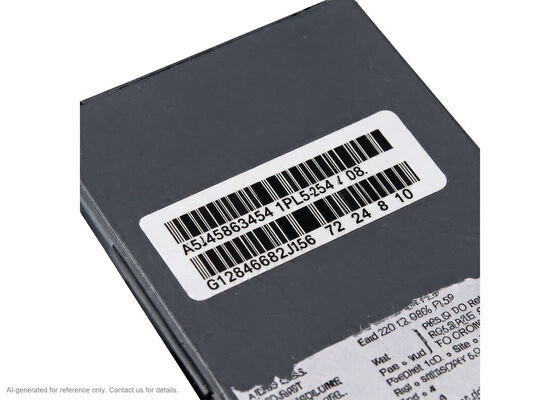

Applications
