Product Details:
Payment & Shipping Terms:
|
| Product Type: | Round Flat Cable | Backing: | PVC, Black |
|---|---|---|---|
| Temp Range: | 75 °C As CL2, -20 °C To 80 °C As AWM | Voltage: | 300 V (NEC 725 CL2 / AWM) |
| Conductors: | 40 | Wire Size: | 28 AWG, 7 Strands |
| Pitch: | 0.050 In (1.27 Mm) Centre To Centre | Primary Ins: | PVC, Grey |
| Halogen Free: | No | Application: | Mass Termination To IDC Connectors |

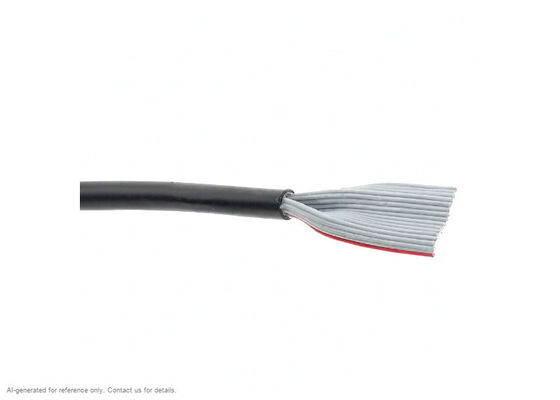

3M 3759/40 | 40 Conductors | 28 AWG Stranded | 0.050 in Pitch | Round PVC Jacket
Product Description
3M Round Jacketed Flat Cable 3759/40 is a 40 conductor ribbon cable rather than an adhesive product. Each 28 AWG stranded copper conductor runs on 0.050 in centres inside grey PVC primary insulation, and the whole assembly is sheathed in a black PVC jacket that produces a round profile for easier routing. The continuous split and bond web lets the cable zip apart for branching and mass terminate on IDC connectors.
Structure
| Component | Material / Construction |
| Backing | grey PVC primary insulation over 40 stranded copper conductors, 7 strands each |
| Adhesive | none – a continuous split/bond web holds the conductors together |
| Release Liner | none – jacketed cable supplied without liner |
Datasheet
| Property | Value |
| Number of conductors | 40 |
| Wire size | 28 AWG, 7 strands |
| Conductor spacing | 0.050 in (1.27 mm) centre to centre |
| Primary insulation | PVC, grey |
| Jacket | PVC, black |
| Voltage rating | 300 V (NEC 725 CL2 / AWM) |
| Temperature rating | 75 °C as CL2, -20 °C to 80 °C as AWM |
| Overall dimension A | 0.39 in (9.8 mm) |
| Overall dimension B | 1.95 in (49.5 mm) |
| Technical data sheet | TS-0070 |
| Halogen free | no |
