KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

China KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking supplier
KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking supplier KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking supplier KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking supplier KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking supplier

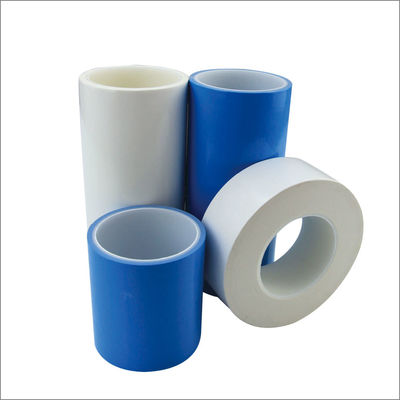

Large Image :  KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

Product Details:

Place of Origin: China
Brand Name: Kingzom
Certification: ISO9001:2015
Model Number: KZ-TCT3

Payment & Shipping Terms:

Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: by carton then by pallet
Delivery Time: Within 2 weeks after payment received.
Payment Terms: D/A, L/C, D/P, T/T, Western Union,
Supply Ability: 8000 rolls per month
Contact Now
Detailed Product Description
Name: Thermally Conductive Adhesive Tape Tape Type: Filled Acrylic Polymer
Filler Type: Ceramic Thickness: 0.125mm/0.25mm/0.38mm/0.50mm
Thermal Conductivity: 0.60 W/m-K Peel Adhesion Strength: 990~1700gf/inch
Highlight:

thermal adhesive tape

,

heat transfer adhesive tape



Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking



Product Description

Thermally Conductive Adhesive Transfer Tapes are designed to provide a preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices (e.g., fans, heat spreaders or heat pipes).


KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking



Datasheet

Item Non- carrier base Thermal conductive tape
BP-05N BP-10N BP-15N BP-20N BP-25N BP-30N BP-40N BP-50N
Tape 1 AHS-CT AHS-CT AHS-CT AHS-CT AHS-CT AHS-CT AHS-CT AHS-CT
Carrier / / / / / / / /
White Liner 0.125mm

Length
Standard


50M


50M


50M



50M


50M



50M



50M



50M
Width 1050mm
Adhesion Thickness 0.05mm 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm

Total Thickness


0.05mm
±10%

0.1mm
±10%

0.15mm
±10%

 0.2mm±10% 0.25mm±10%

0.3mm
±10%

 0.4mm±10% 0.5mm±10%

180°Peel Adhesion
(PSTC-1)(N/25mm)

 ＞11.76 ＞11.76 ＞13.68 ＞14.70 ＞17.64 ＞17.64 ＞17.64 ＞17.64

Temperature Resistance
Long term ℃
Short Term ℃



80
120



80
120



80
120



80
120



80
120



80
120



80
120



80
120

Holding power
(PSTC-7)(H)
(1KG/KV/25℃)
(1KG/KV/60℃)



＞24
＞12



＞48
＞24



＞48
＞24



＞48
＞24



＞48
＞24



＞48
＞24



＞48
＞24



＞48
＞24

Insulating Strength
(ASTM D149(KV)

3.0KV,
10mA/10S

3.0KV,
10mA/10S

4.0KV,
10mA/10S

4.0KV,
10mA/10S

4.0KV,
10mA/10S

4.0KV,
10mA/10S

4.0KV,
10mA/10S

4.0KV,
10mA/10S
Thermal(W/mk) ＞0.6 ＞0.6 ＞0.8 ＞0.8 ＞0.8 ＞0.8 ＞0.8 ＞0.8
Service Temperature -20℃～+120℃


Features

  • High mechanical strength
  • Improved surface wet-out for rough surface/LSE substrates
  • Excellent shock performance
  • Wider and longer roll is available
  • Halogen free
  • Ideal for thin bonding applications
  • Good thermal transfer

KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

Applications

  1. IC Packaging Heat Conduction‎
  2. Heatsink-Thermal Interface Attachment‎
  3. Battery Thermal Management‎
  4. LED Lighting Thermal Management‎
  5. Heatsink-Thermal Interface-Non Bonding
  6. Flex Bonding
  7. Thermal Interface-Damping-Cushioning‎

KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

Warehouse
KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

Our Advantage

  • Support various of die cutting by your specific demand.
  • Customized dimension is welcomed.

KZ-TCT3 | Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking
