Product Details:
Payment & Shipping Terms:
|
| Name: | Thermally Conductive Adhesive Tape | Tape Type: | Filled Acrylic Polymer |
|---|---|---|---|
| Filler Type: | Ceramic | Thickness: | 0.125mm/0.25mm/0.38mm/0.50mm |
| Thermal Conductivity: | 0.60 W/m-K | Peel Adhesion Strength: | 990~1700gf/inch |
| Highlight: | thermal adhesive tape,heat transfer adhesive tape |
||

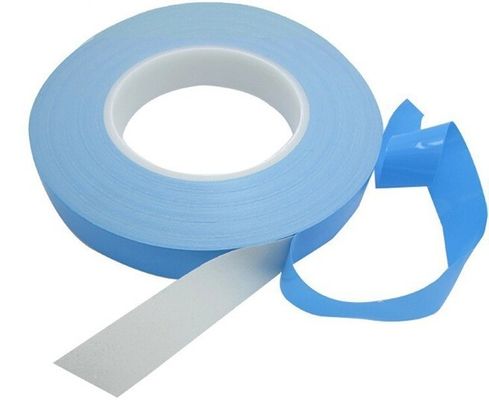

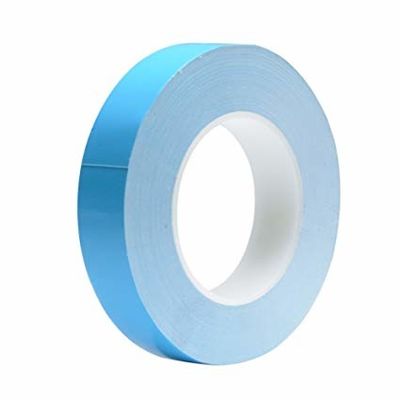

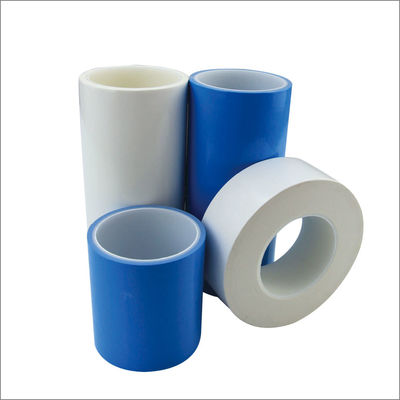

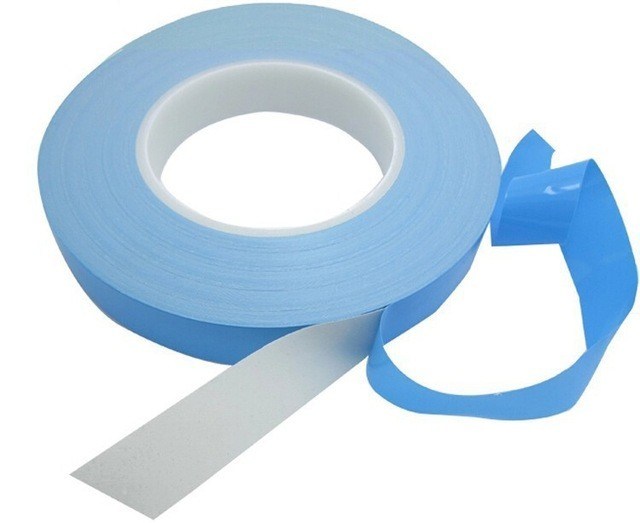

Thermal Conductive Tape | 5mils 10mils 15mils 20mils | White | For Heat Sinking

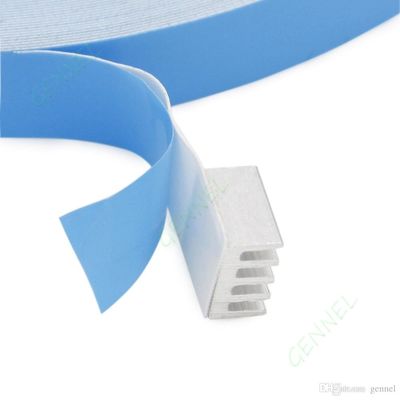

Thermally Conductive Adhesive Transfer Tapes are designed to provide a preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices (e.g., fans, heat spreaders or heat pipes).
| Item | Non- carrier base Thermal conductive tape | |||||||||||||||
| BP-05N | BP-10N | BP-15N | BP-20N | BP-25N | BP-30N | BP-40N | BP-50N | |||||||||
| Tape 1 | AHS-CT | AHS-CT | AHS-CT | AHS-CT | AHS-CT | AHS-CT | AHS-CT | AHS-CT | ||||||||
| Carrier | / | / | / | / | / | / | / | / | ||||||||
| White Liner | 0.125mm | |||||||||||||||
|
Length |
50M |
50M |
50M |
|
|
50M |
50M |
50M |
||||||||
| Width | 1050mm | |||||||||||||||
| Adhesion Thickness | 0.05mm | 0.1mm | 0.15mm | 0.2mm | 0.25mm | 0.3mm | 0.4mm | 0.5mm | ||||||||
|
Total Thickness |
0.05mm |
0.1mm |
0.15mm |
0.2mm±10% | 0.25mm±10% |
0.3mm |
0.4mm±10% | 0.5mm±10% | ||||||||
|
180°Peel Adhesion |
＞11.76 | ＞11.76 | ＞13.68 | ＞14.70 | ＞17.64 | ＞17.64 | ＞17.64 | ＞17.64 | ||||||||
|
Temperature Resistance |
|
|
|
|
|
|
|
|
||||||||
|
Holding power |
|
|
|
|
|
|
|
|
||||||||
|
Insulating Strength |
3.0KV, |
3.0KV, |
4.0KV, |
4.0KV, |
4.0KV, |
4.0KV, |
4.0KV, |
4.0KV, |
||||||||
| Thermal(W/mk) | ＞0.6 | ＞0.6 | ＞0.8 | ＞0.8 | ＞0.8 | ＞0.8 | ＞0.8 | ＞0.8 | ||||||||
| Service Temperature | -20℃～+120℃ | |||||||||||||||
