Thermally Conductive Tape | Adhesive Transfer Tape | Use For Battery Thermal Management | Flex Bonding

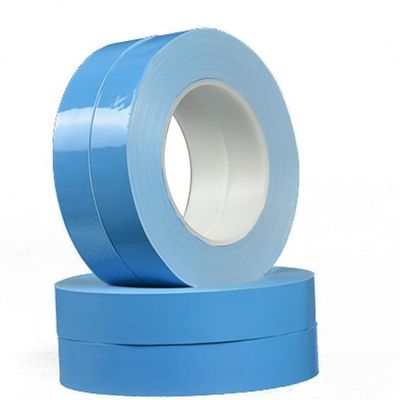

Large Image : Thermally Conductive Tape | Adhesive Transfer Tape | Use For Battery Thermal Management | Flex Bonding

Product Details:

Place of Origin:	CHINA
Brand Name:	KINGZOM
Certification:	Rohs, SGS
Model Number:	BMTC0813

Payment & Shipping Terms:

Minimum Order Quantity:	100 Rolls
Price:	Negotiable
Packaging Details:	Negotiable
Delivery Time:	3-5 worrkg days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	20k Square meter

Contact Now

Detailed Product Description

Product:	Thermally Conductive Transfer Tape	Carrier:	No Carrier
Thick:	0.25mm	Thermal Conductivity:	0.60 W/m-K
Operating Temperature:	90°C To 100 °C	Dielectric Strength:	26 KV/mm
Highlight:	thermal adhesive tape , heat transfer adhesive tape

Thermally Conductive Tape | Adhesive Transfer Tape | Use For Battery Thermal Management | Flex Bonding

Product Description

Thermally Conductive Adhesive Transfer Tape is designed to provide a preferential heat-transfer path between heat-generating components and heat sinks or other cooling device

Features

High mechanical strength
Improved surface wet-out for rough surface/LSE substrates
Excellent shock performance
Wider and longer roll is available
Halogen free
Ideal for thin bonding applications
Good thermal transfer

Datasheet

Application Category	Bonding, Thermal Interface Materials
Carrier Type	No Carrier
Color	White
Dielectric Strength	26 kV/mm
Liner Type	Double
Operating Temperature Range (Celsius) Long Term	(Weeks-Months) 90 to 100 Degree C
Operating Temperature Range (Celsius) Short Term	(Hours-Days) 125 to 150 Degree C
Product Series	BMTC0813
Thermal Conductivity	0.60 W/m-K
Total Tape Thickness without Liner (Imperial)	10 mil
Total Tape Thickness without Liner (Metric)	0.25 mm
