NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape

Certification
Good quality Polyimide Film Tape for sales
Good quality Polyimide Film Tape for sales
I want to say that your tape is very good. Thank you for all your suggestion, after sales service is also good.

—— Mr Benjamin

I'm Online Chat Now

NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape

China NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape supplier
NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape supplier NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape supplier NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape supplier NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape supplier

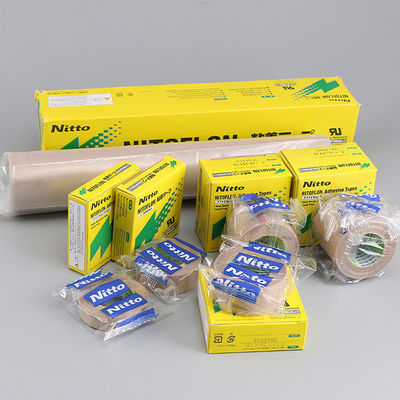

Large Image :  NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape

Product Details:

Place of Origin: Japan
Brand Name: Nitto
Certification: UL RoHS
Model Number: 973UL

Payment & Shipping Terms:

Minimum Order Quantity: 1Rolls
Price: $12.55/Rolls
Packaging Details: Carton +Protective film
Delivery Time: 1-10 business days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000000SQM /Month
Contact Now
Detailed Product Description
Item: NITTO PTFE 973UL Adhesive: Silicone
Thick: 0.13mm SIZE: 50mm*10M
Material: PTFE Glass Fibre Tape Other Size: YES
Application: Sealing Heat Resistant: YES

NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape
  • UL510 certified.
  • Environment-friendly and conforms to Notification No.20 of the Ministry of Health, Labor and Welfare.
  • Superior mold-releasing and sliding properties.
  • Good holding property at elevated temperatures and dimensional stability.
  • The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
  • NITTO seriesthickness-0-13mm-973UL-S-type-nitto



Application
  • LCD, FPC/PCB photoelectron industry, etc.
  • Food and pharmaceutical packaging industry.
  • Plastic heat sealing machine, sealing machine at a high speed.
  • Not melt glue machine.
  • Motor, high and low voltage electrical appliances, wire and cable insulation protection, battery manufacturing.
  • Locomotive, shovel leather sewing machine.
  • Rubber plastic roller coating.
  • Other need high temperature resistance, abrasion resistance, corrosion resistance, adhesion.

Kingzom provide customized PTFE tape solutions for a customer depending on
their needs
.

NITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth TapeNITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth TapeNITTO PTFE No.973UL Sealing tape Fluoroplastic Saturated Glass Cloth Tape



DATA Sheet



Item Unit No.973UL-S No.973UL Test Method
Thickness mm 0.13 0.15 0.18

Compatible with JIS

C 2107

Tensile strength N/19mm 240 590 530

Adhesive

strength

25°C N/19mm 6.8 9.0 9.7
100°C 3.2 3.9 4.7
150°C 2.2 2.6 3.0
Unwinding force N/19mm 5.9 5.9 7.5
Temperature range °C -60~260 -



Package Details





No.973UL-S 0.13mm × 13mm × 10m 250 rolls / carton box
No.973UL-S 0.13mm × 19mm × 10m 250 rolls / carton box
No.973UL-S 0.13mm × 25mm × 10m 250 rolls / carton box
No.973UL-S 0.13mm × 38mm × 10m 125 rolls / carton box
No.973UL-S 0.13mm × 50mm × 10m 125 rolls / carton box
No.973UL-S 0.13mm × 300mm × 10m 25 rolls / carton box



Frequently Asked Question

  • Q:Get fast sampling ( free samples excluding freight ) ?
  • Available free sample sizes: 2mm to 150mm width X 33M length .
  • Please advise shipping infos & express account. If no express account will need pay express cost to supplier .
  • Email to supplier for sample specs + detailed contacts (address + postcode + contact person + phone no).
  • Quick Lead time: within 3 workdays.
  • Q:What is your MOQ
  • Sample Order are available .
  • Q:How can we assit you locate the tape you need ?
  • show us the datasheets pictures you have
  • Tell us your application
  • let kow quantity X size (width X length X thickness)
  • Then we recommend and offer best price to you.
  • Q:What certificates you have for your products?
  • We have some patents and ISO9001 and ISO2004 Certification and other certifications like CE,UL,SGS,RoHs, Reach etc.
  • Q:About shipment :
  • By EMS, DHL, FedEx, TNT, UPS or other express.
  • By our forwarding agent (by air or by sea).
  • By your own forwarding agent.
  • By domestic forwarding agents to any city in China.
