Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding

China Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding supplier
Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding supplier Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding supplier Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding supplier Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding supplier

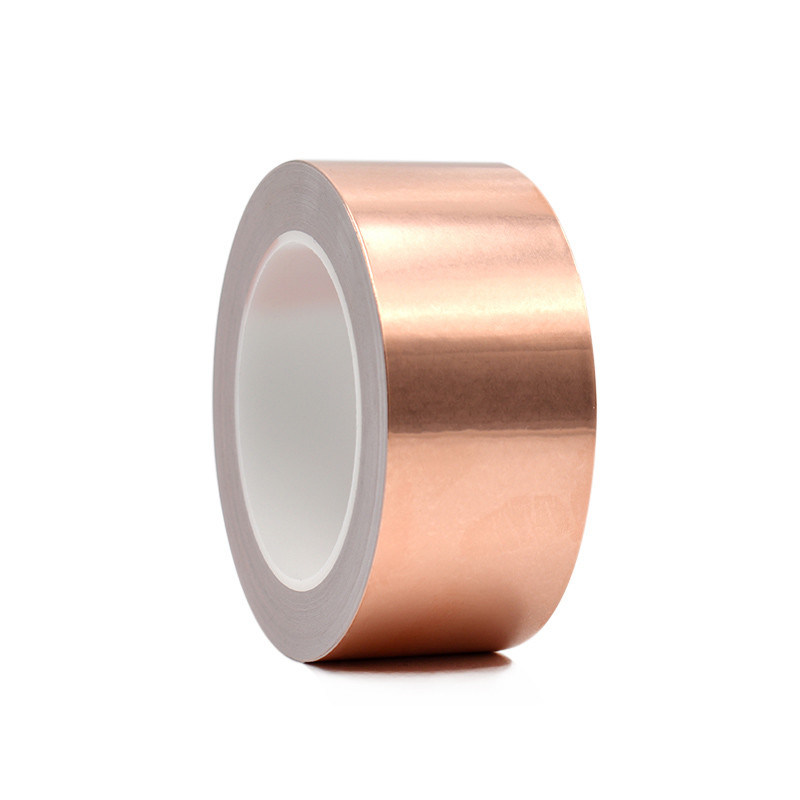

Large Image :  Electrically Conductive Tape , Copper Foil Tape with Conductive Adhesive for EMI Shielding

Product Details:

Brand Name: Kingzom
Certification: UL,CE, ROHS, SGS
Model Number: KZCCPF-60

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Copper Foil Tape Standard Packinng
Delivery Time: 7days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000KG/Month
Contact Now
Detailed Product Description
Name: Copper Foil Tape Temperature Range: -40℃~130℃
Application: Electrically Conductive And EMI Shielding Adhesive Type: Acrylic Conductive
Carrier: Cu 25μm Size: 0.06mm Thickness, Customized

Electrically Conductive Copper Foil Tape with Conductive Adhesive for EMI Shielding

Product Description


Copper foil tape has dual conductivity so current will flow through both sides and the adhesive. One side is coated with a strong adhesive which is protected by paper backing on the roll. Tape is resistant to oxidization and discoloration.It mainly used in electromagnetic shielding, sub-electric signal shielding and magnetic signal shielding. Electric signal shielding mainly depends on excellent electrical conductivity of copper and magnetic shielding requires conductive material "nickel" of adhesive surface to achieve the function of magnetic shielding, which is widely used in mobile phones, laptops and other digital products.



Structure


Cu 25μm
Conductive acrylic adhesive
Release tape



Datasheet



Physical Characteristics Standard Values
Tape Type Copper Foil
Adhesive Type Acrylic Conductive
Backing Thickness 1.4 mil (0.04mm)
Backing Type Copper
Shielding Effectiveness >85 dB, 1MHz to 2GHz
Temperature Range -40℃~130℃
Total thickness (ASTM D1000) 2.6 mil (0.066mm)
Breaking strength 25 lb./in (44 N/10mm)
Adhesion to steel 35 oz/in (3.8 N/10mm)



Application

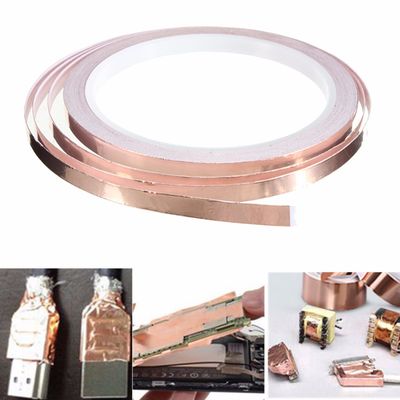

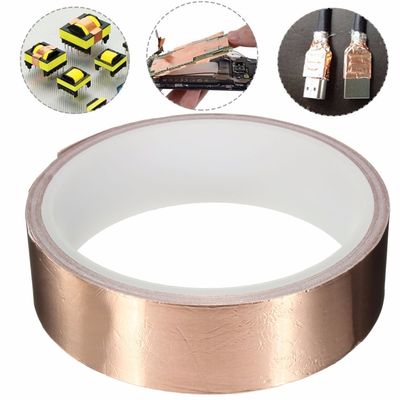

Suitable for all kinds of transformers, mobile phones, computers, PDAs, PDPs, LCD monitors, notebook computers, photocopiers and other electronic products within the electromagnetic shielding requirements.



General Knowledge about Copper Foil Tape

  1. Test conditions for the room temperature 25 ℃, relative humidity 65 ℃ following the United States ASTMD-1000 test results.
  2. When the goods are stored, please keep the indoor dry and ventilated, domestic copper storage time is generally 6 months, the importing country can be stored for longer and not easily oxidized
  3. Products are mainly used to eliminate electromagnetic interference EMI, electromagnetic wave isolation on the human body hazards, mainly used in computer peripheral wire, computer monitors and transformers manufacturers.
  4. Copper foil tape is divided into single-sided adhesive and double-sided adhesive. Single-sided plastic coated copper foil tape is divided into single-lead copper foil tape and double-guided copper foil tape, single-conductor copper foil tape refers to the plastic surface is not conductive, only the other side of the copper conductive. Double copper foil tape refers to the plastic surface conductive, and the other side of the copper itself is conductive, it is said that double-conductor that is double-sided conductive. There are two-sided plastic coated copper foil tape and other materials used to be processed into more expensive composite materials, double-sided plastic coated copper foil’s surface is also divided into conductive and non-conductive. Customers can according to their own needs of the conductive to choose the product.
