Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner

China Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier
Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner supplier

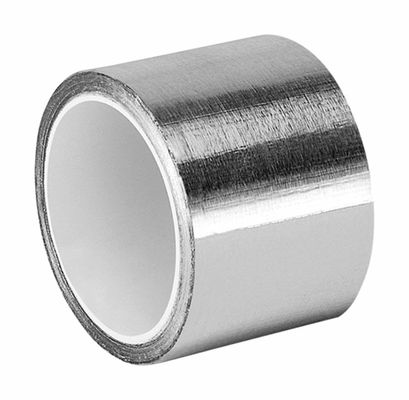

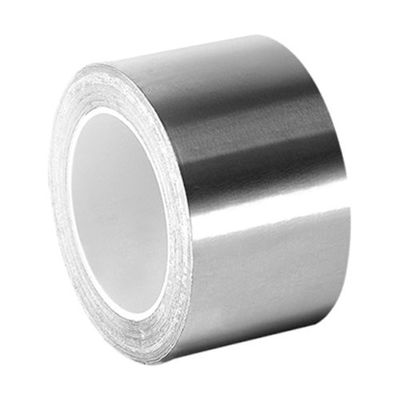

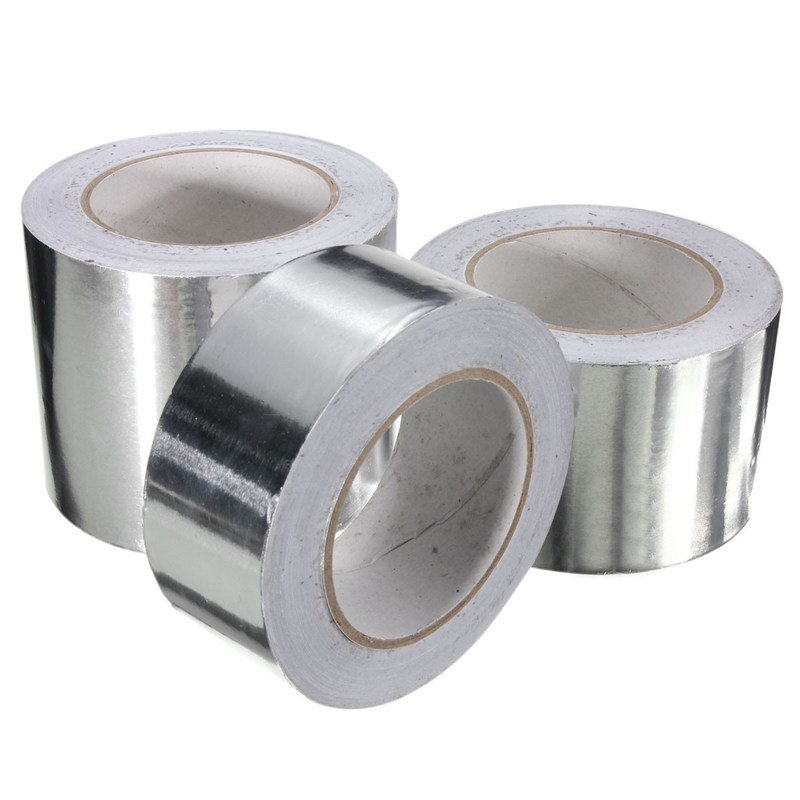

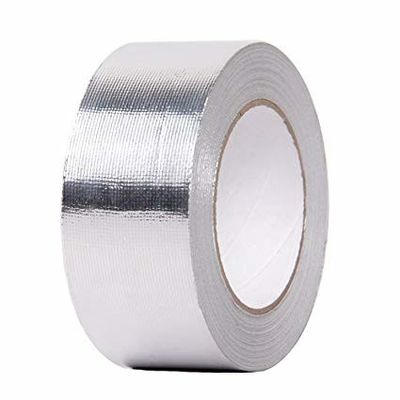

Large Image :  Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner

Product Details:

Place of Origin: CN
Brand Name: KZ
Certification: UL
Model Number: KZAFT060

Payment & Shipping Terms:

Minimum Order Quantity: 1Rolls
Price: $576.92/Rolls
Packaging Details: Carton +Protective film
Delivery Time: 1-10 business days
Payment Terms: T/T, Western Union,PayPal, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Rolls /Month
Contact Now
Detailed Product Description
Item: Aluminum Foil Tape Adhesive: Acrylic, Rubber Options
Thick: 0.06mm SIZE: 1200mm*1200M
Material: Aluminum Foil Other Size: YES
Application: HVAC & Refrigerator Color: Aluminum /Silver


Aluminum Foil Tape Paper with Fireproof & Waterproof Used for Air Conditioner
Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner



Aluminum Foil Tape :Aluminum Foil Tape is a nominal dead soft aluminum foil with cold weather flame-retardant acrylic adhesive and protected by easy release liner.





Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner

Aluminum Foil Electrically Conductive Tape Paper With Fireproof & Waterproof Used For Air Conditioner



Application



  • sealing joints / seams against moisture and vapor on foil jacketing insulation.
  • Suitable for many other permanent sealing, holding, splicing or masking applications requiring the protection offered by a foil backing.





Feature

  • High thermal conductivity to maximize efficiency of heating or cooling
  • High heat reflectivity to protect temperature-sensitive materials against heat damage and hot spots
  • Protect parts from flame damage
  • Seal and protect sensitive surfaces from dust and moisture
  • Resist UV degradation for long-term performance


DATA SHEET



Property
Unit
Value
Test Method
Backing Thickness
Micron
30
PSTC-33 / ASTM D3652
Peel Adhesion
N/25mm
15
PSTC-1 / ASTM D3330
Tack Rolling Ball
cm
5
PSTC-6 / ASTM D3121
Tensile Strength
N/25mm
37.5
PSTC-31 / ASTM D3759
Holding Power
min/25*25mm2 1kg weight
10000
PSTC-7 /ASTM D3654
Elongation
%
3.0
PSTC-31 / ASTM D3759
Fire Rating
(25 / 50 & Class O)
Passed
UL 723 & BS476 Pt 6 & 7
Service Temperature
-40 +120
----------
Applying Temperature
-5 +40
----------



Frequently Asked Question



  • Q:Get fast sampling ( free samples excluding freight ) ?
  • Available free sample sizes: 2mm to 150mm width X 33M length .
  • Please advise shipping infos & express account. If no express account will need pay express cost to supplier .
  • Email to supplier for sample specs + detailed contacts (address + postcode + contact person + phone no).
  • Quick Lead time: within 3 workdays.
  • Q:What is your MOQ
  • Sample Order are available .
  • Q:How can we assit you locate the tape you need ?
  • show us the datasheets pictures you have
  • Tell us your application
  • let kow quantity X size (width X length X thickness)
  • Then we recommend and offer best price to you.
  • Q:What certificates you have for your products?
  • We have some patents and ISO9001 and ISO2004 Certification and other certifications like CE,UL,SGS,RoHs, Reach etc.
  • Q:About shipment :
  • By EMS, DHL, FedEx, TNT, UPS or other express.
  • By our forwarding agent (by air or by sea).
  • By your own forwarding agent.
  • By domestic forwarding agents to any city in China.
