|Name:||White Silicone Glass Cloth Tape||Carrier:||Glass Cloth|
high voltage electrical insulating tape,
electrical pvc insulation tape

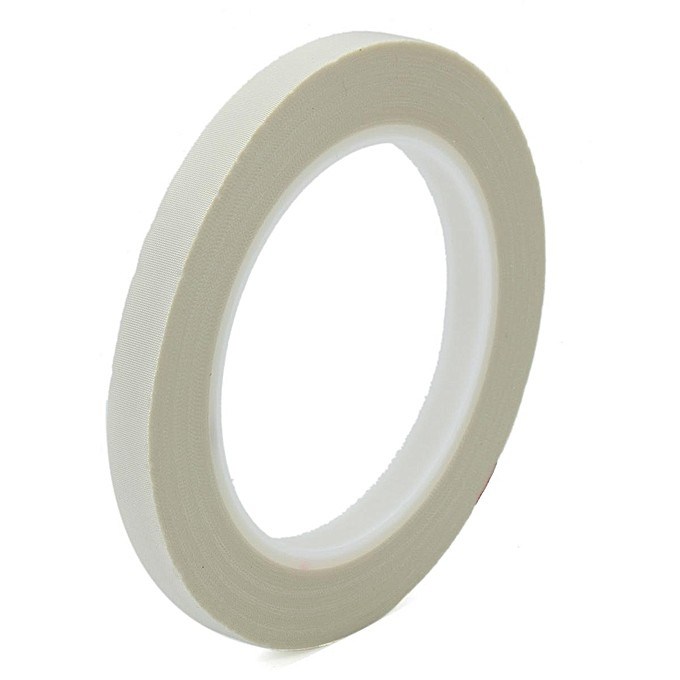

Glass Cloth Electrical Tape is a white glass cloth tape with a hightemperature thermosetting silicone pressure-sensitive adhesive.
It is designed for use in 600-volt dry location applications motors, and transformers with and without varnish coating. Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures.
The thermosetting adhesive provides elevated temperature performance up to Class N 392°F (200° C) temperature rating. This tape provides insulation and solvent-resistant protection for use as coil cover, anchor, banding and core, layer and crossover insulation. This tape features a noncorrosive adhesive. It is conformable, printable and flame retardant.
|Physical Characteristics||Standard Values|
|Total Tape Thickness||0.18mm|
|Temperature Resistance||60~260 degrees|
1. Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes.
2. Silicone adhesive offers high temperature performance and long aging.
3. Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear.
Insulating electric and induction-type furnace power supply leads.
Securing high-temperature, non-PSA insulation (such as asbestos and glass) in high-temperature areas.
Reinsulating and repairing coils on mining machines
Especially suited to high-temperature applications
Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection.
Pack and Delivery
Support various of die cutting by your specific demand.
