3M 9080 | Non Woven Cloth Tape | Double Sided | High Performance

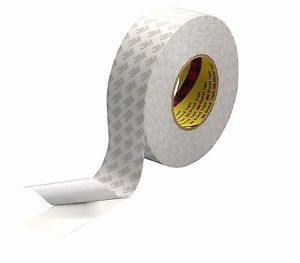

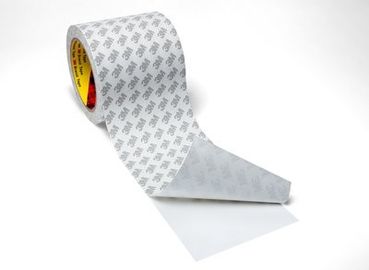

Large Image : 3M 9080 | Non Woven Cloth Tape | Double Sided | High Performance

Product Details:

Place of Origin:	China
Brand Name:	3M
Certification:	ISO 9001:2008
Model Number:	9080

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	USD 3.38 ~ 5.88 per square meter
Packaging Details:	Carton packing
Delivery Time:	3~10 days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50,000 rolls

Contact Now

Detailed Product Description

Product Name:	3M 9080 High- Performance Double Sided Adhesive Non-woven Cloth Tape	Thickness:	0.16mm
Size:	Customized	Length:	50m
Adhesive Type:	Pressure Sensitive	Color:	Off-white
Carrier:	Non-woven Cloth/Tissue	Die-cutting:	Workable
Highlight:	double sided sticky tape , double sided adhesive tape

3M 9080 | Non Woven Cloth Tape | Double Sided | High Performance

Product Description

9080 is a double coated acrylic adhesive on a non-woven tissue carrier. It has a very high level of initial tack and good adhesion to a wide variety of sufaces including LSE materials.

3M 9080 | Non Woven Cloth Tape | Double Sided | High Performance

Structure

Datasheet

Adhesive Type	Acrylic
Carrier	Non-woven tissue
Thickness	0.16mm
Release Liner	White polycoated paper with 3M LOGO
Color	White
Adhesion	7.5N/cm

Applications

Bond strength is dependent upon the amount of adhesiveto-surface contact developed. Firm application pressure develops better adhesive contact & thus improves bond strength.
To obtain optimum adhesion, the bonding surfaces must be clean dry and well unified. A typical surface cleaning solvent is isopropyl alcohol & water. Use proper safety precautions for handling solvents.
Ideal tape application temperature range is 21°C to 38°C (70°F to 100°F). Initial tape application to surfaces at temperatures below 10°C (50°F) is not recommended because the adhesive becomes too firm to adhere readily. However once properly applied low temperature holding is generally satisfactory.
