Product Details:
Payment & Shipping Terms:
|
| Product Type: | PET Cloth Tape | Thickness: | 260 µm |
|---|---|---|---|
| Backing: | PET Cloth | Adhesive: | Advanced Acrylic |
| Temp Range: | -40 °C To 150 °C, Qualified For 3000 H At 150 °C | Tensile: | 275 N/cm |
| Elongation: | 40% | Steel Peel: | 3 N/cm On PV2, 5 N/cm On PV01 |
| Length: | 25 M | Width: | 9, 19, 25, 32 Mm |
| Core: | 38 Mm | Application: | Bundling And Protecting Engine Compartment Harnesses |

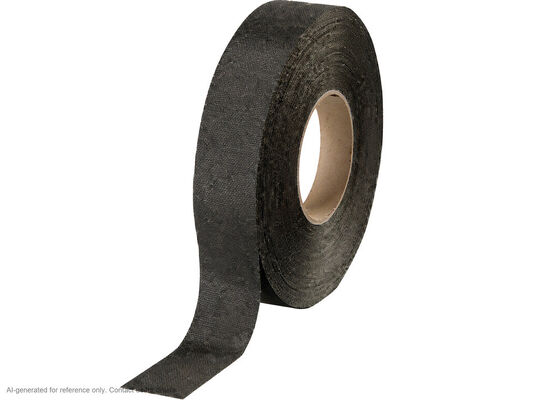

tesa 51036 | PET Cloth 260 µm | Advanced Acrylic | 150 °C for 3000 h | LV312 Class D
Product Description
tesa 51036 is a PET cloth wire harness tape coated with the solvent free triple A advanced acrylic adhesive. The cloth survives 150 °C for 3000 hours, reaches LV312 Class D abrasion resistance on both mandrels and resists flagging thanks to the adhesive formulation. It is aimed at engine compartments and other areas where a harness has to endure heat and rubbing at the same time.
Structure
| Component | Material / Construction |
| Backing | PET cloth, black or orange |
| Adhesive | advanced acrylic (triple A), solvent free |
| Release Liner | none – self-wound roll |
Datasheet
| Property | Value |
| Total thickness | 260 µm |
| Backing | PET cloth |
| Adhesive | advanced acrylic |
| Elongation at break | 40% |
| Tensile strength | 275 N/cm |
| Temperature resistance | -40 °C to 150 °C, qualified for 3000 h at 150 °C |
| Abrasion resistance | Class D on both 5 mm and 10 mm mandrels (LV312) |
| Noise damping | Class A (LV312) |
| Adhesion to steel | 3 N/cm on PV2, 5 N/cm on PV01 |
| Unwind force | 11 N/roll at 30 m/min |
| Standard widths | 9, 19, 25, 32 mm |
| Standard length | 25 m |
| Core diameter | 38 mm |
| Minimum application temperature | 15 °C |
