Product Details:
Payment & Shipping Terms:
|
| Product Type: | Acrylic Foam Tape | Thickness: | 1.14 Mm |
|---|---|---|---|
| Temp Range: | Up To 90 °C | Core Color: | Dark Grey |
| Liner: | Red Branded PE Plus Clear 2 Mil T-liner | OEM Spec: | WSS-M11P65-A2, MS-12194, GMW15201 Type VIIIA |
| Shelf Life: | 24 Months | Tabbing: | Recommended For Tape To Plastic Part Bonds |
| Application: | Body Side Mouldings |
3M Acrylic Plus PT1100T | Dark Grey 1.14 mm Foam | Dual Acrylic | Clear T-Liner | 90 °C
Product Description

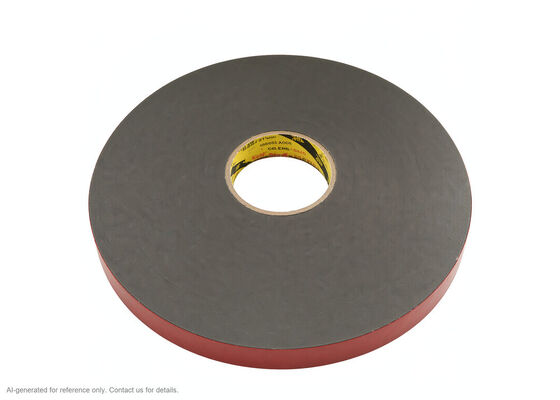

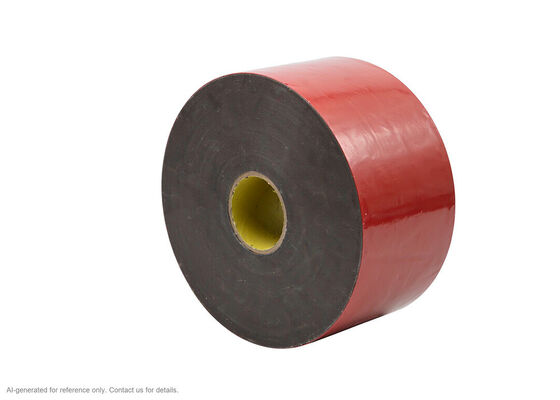

3M Acrylic Plus Tape PT1100T is a dark grey acrylic foam tape 1.14 mm thick with a different acrylic adhesive on each face. The liner side is tuned for scratch and mar resistant automotive paint, while the other side takes hold of metal and primed plastic trim. A clear T-liner sits over the red branded film so the roll can be heat bonded or tabbed, which suits automated exterior attachment lines.
Structure
| Component | Material / Construction |
| Backing | viscoelastic closed cell acrylic foam core, dark grey, 1.14 mm |
| Adhesive | acrylic pressure sensitive, different formulation per face |
| Release Liner | red 3M branded polyethylene film with a clear 2 mil T-liner |
Datasheet
| Property | Value |
| Total thickness | 1.14 mm |
| Core color | dark grey |
| Operating temperature | up to 90 °C |
| Liner | red branded PE plus clear 2 mil T-liner |
| Adhesion promoter | recommended for tape to plastic part bonds |
| OEM specifications | WSS-M11P65-A2, MS-12194, GMW15201 Type VIIIA |
| Shelf life | 24 months |
Features
Applications
