Product Details:
Payment & Shipping Terms:
|
| Product Type: | Acrylic Foam Tape | Thickness: | 1.20 Mm (0.047 In) ±0.13 Mm |
|---|---|---|---|
| Adhesive: | Heat Activated | Temp Range: | Up To 95 °C (203 °F) |
| Width: | 4 Mm | Core Color: | Black |
| Liner: | Red Polyolefin | OEM Spec: | WSS-M3G168B, GMW 15201 Type XII |
| Shelf Life: | 2 Years | Application: | Primary Door Seals On Cars And Recreational Vehicles |

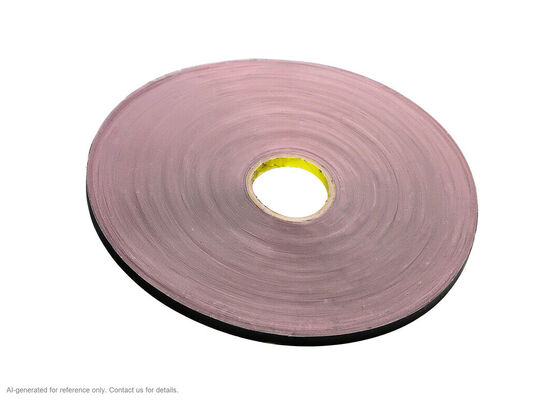

3M Acrylic Plus WT4112 | Black 1.2 mm Foam | E2 Heat-Activated Face | 95 °C | Weatherstrip
Product Description
3M Acrylic Plus Tape WT4112 is a black acrylic foam tape 1.2 mm thick that fixes weatherstrip and gasket seals to automotive body panels. The non-liner face carries the E2 heat activated adhesive, which bonds EPDM, TPE and many TPV grades on contact without any primer. The liner face uses JL2 pressure sensitive acrylic aimed at low surface energy and scratch resistant paint, and the soft foam core wets out to keep the seal watertight.
Structure
| Component | Material / Construction |
| Backing | viscoelastic acrylic foam core, black, 1.2 mm |
| Adhesive | E2 heat activated on the non-liner side, JL2 pressure sensitive on the liner side |
| Release Liner | red polyolefin film, silicone coated one side |
Datasheet
| Property | Value |
| Total thickness | 1.20 mm (0.047 in) ±0.13 mm |
| Adhesive type | heat activated |
| Liner side adhesive | JL2 |
| Non-liner side adhesive | E2 |
| Core color | black |
| Temperature resistance | up to 95 °C (203 °F) |
| Liner | red polyolefin |
| Minimum planetary roll width | 4 mm |
| OEM specifications | WSS-M3G168B, GMW 15201 Type XII |
| Shelf life | 2 years |
Features
Applications
