Product Details:
Payment & Shipping Terms:
|
| Product Type: | Acrylic Foam Tape | Thickness: | 1.14 Mm (0.045 In) ±0.13 Mm |
|---|---|---|---|
| Temp Range: | -40 °C To 90 °C, Short Term 120 °C | Density: | 633 Kg/m³ |
| Liner: | Red Branded PE, Both Sides Siliconized | OEM Spec: | WSS-M11P65-A2, MS-12194, GMW15201 Type IXB |
| Shelf Life: | 24 Months At 4 °C To 38 °C | Application: | Rocker Panel Attachment |
3M Acrylic Plus EX4011 | 1.14 mm Acrylic Foam | Black | Dual Adhesive | -40 to 90 °C
Product Description

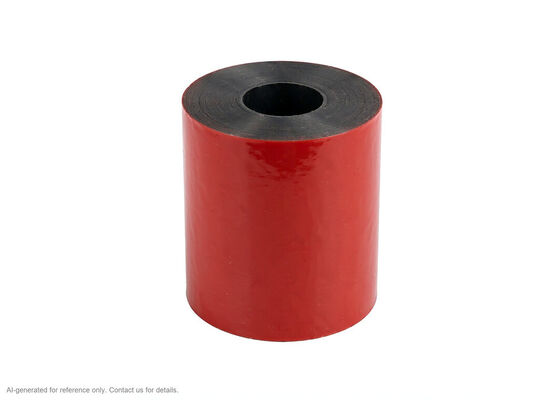

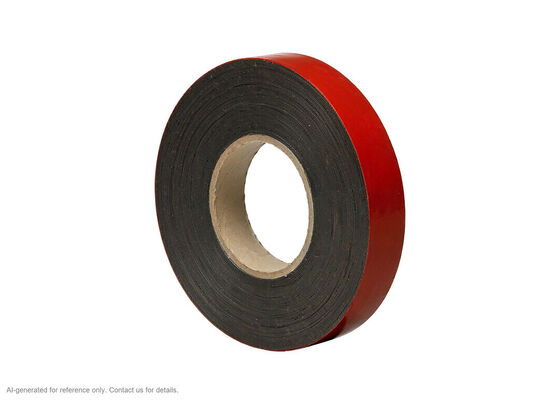

3M Acrylic Plus Tape EX4011 is a black acrylic foam tape 1.14 mm thick that carries a different adhesive on each face. The liner side uses the JL2 formulation aimed at scratch and mar resistant medium surface energy paint, while the other face uses VR1 to take hold of automotive trim and low surface energy substrates. The closed cell viscoelastic core relaxes stress under load and holds a tight bond line around curves.
Structure
| Component | Material / Construction |
| Backing | closed cell acrylic foam core, black, 1.14 mm |
| Adhesive | JL2 on the liner side, VR1 on the non-liner side |
| Release Liner | red 3M branded polyethylene film, silicone coated on both sides |
Datasheet
| Property | Value |
| Total thickness | 1.14 mm (0.045 in) ±0.13 mm |
| Foam density | 633 kg/m³ |
| 90° peel on 3M reference stainless steel after 20 min at room temperature: 44 N/cm liner side, 28 N/cm non-liner side | |
| Temperature resistance | -40 °C to 90 °C, short term 120 °C |
| Liner | red branded PE, both sides siliconized |
| Shelf life | 24 months at 4 °C to 38 °C |
| OEM specifications | WSS-M11P65-A2, MS-12194, GMW15201 Type IXB |
