Product Details:
Payment & Shipping Terms:
|
| Product Type: | Tabbing Foil | Thickness: | 105 µm (0.10 Mm) |
|---|---|---|---|
| Color: | Clear | Width: | 3.2 Mm |
| Shelf Life: | 12 Months At 4 °C To 38 °C | Weight: | 104.4 G/m² |
| Application: | Liner Removal On Automated Tape Application Lines |

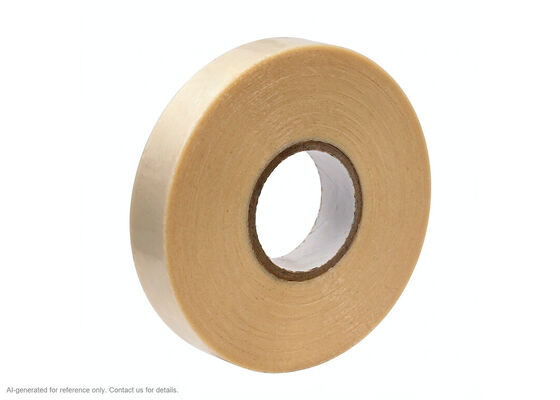

3M 5082 | Clear Heat-Activatable Tabbing Foil | 105 µm | Matte Sealing Face | Polyolefin Liners
Product Description
3M Tabbing Tape 5082 is a clear heat activated foil of polyamide and polyethylene, 0.10 mm thick, made to be sealed onto a release liner so that liner can be pulled away cleanly during production. It adheres best to the polyolefin liners used across 3M Acrylic Foam and Acrylic Plus Tapes. The sealing face carries a matte finish, which improves slip and handling in high volume assembly.
Structure
| Component | Material / Construction |
| Backing | polyamide / polyethylene composite foil, clear, 105 µm |
| Adhesive | none – heat activated sealing layer on the matte face |
| Release Liner | none – the foil itself is sealed onto the customer's liner |
Datasheet
| Property | Value |
| Total thickness | 105 µm (0.10 mm) (DIN 53370) |
| Weight per area | 104.4 g/m² (DIN 53352) |
| E-modulus (longitudinal) | 450 MPa (EN ISO 527-1) |
| Elongation at break (longitudinal) | 450% (EN ISO 527-1) |
| Color | clear |
| Sealing side | matte |
| Lab sealing window | 130 °C to 155 °C for 0.8 to 1.2 s at about 30 N/cm² |
| Equipment sealing window | 145 °C to 180 °C for 1 to 2 s at 65 N/cm² |
| Minimum roll width | 3.2 mm |
| Shelf life | 12 months at 4 °C to 38 °C |
