Product Details:
Payment & Shipping Terms:
|
| Product Type: | Acrylic Foam Tape | Thickness: | 1.0 Mm (40 Mil) |
|---|---|---|---|
| Color: | Clear | Tensile: | 690 KPa On Aluminium |
| Peel Adhes: | 26 N/cm To Stainless Steel After 72 H | Density: | 960 Kg/m³ (60 Lb/ft³) |
| Liner Thk: | 0.13 Mm | Application: | Bonding Clear And Translucent Panels |

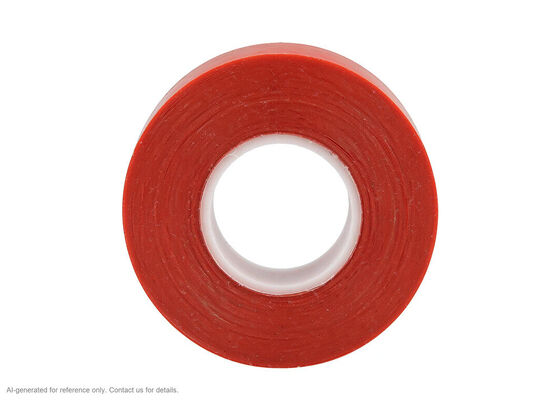

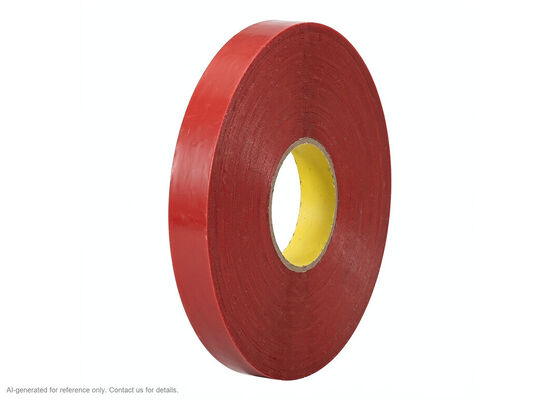

3M VHB 4910 | 1.0 mm Solid Acrylic Foam | Clear | Red PE Liner | 960 kg/m³
Product Description
3M VHB Tape 4910 is a 1.0 mm double sided acrylic foam tape built on a solid foam core with general purpose acrylic adhesive on both faces. It is clear, which makes it the grade chosen when transparent or translucent parts have to be joined without a visible joint line. The tape takes the place of rivets, welds, screws and liquid adhesives and seals the joint against water and moisture as it does so.
Structure
| Component | Material / Construction |
| Backing | solid acrylic foam, clear, 1.0 mm (40 mil) |
| Adhesive | general purpose acrylic on both faces |
| Release Liner | red printed PE film, 0.13 mm |
Datasheet
| Property | Value |
| Total tape thickness | 1.0 mm (40 mil) (ASTM D3652) |
| Thickness tolerance | ±10% |
| Foam density | 960 kg/m³ (60 lb/ft³) (ASTM D3574) |
| 90° peel adhesion | 26 N/cm to stainless steel after 72 h (ASTM D3330) |
| Normal tensile strength | 690 kPa on aluminium (ASTM D897) |
| Shear strength | 480 kPa on stainless steel (ASTM D1002 / ISO 4587) |
| Liner thickness | 0.13 mm |
| Product color | clear |
