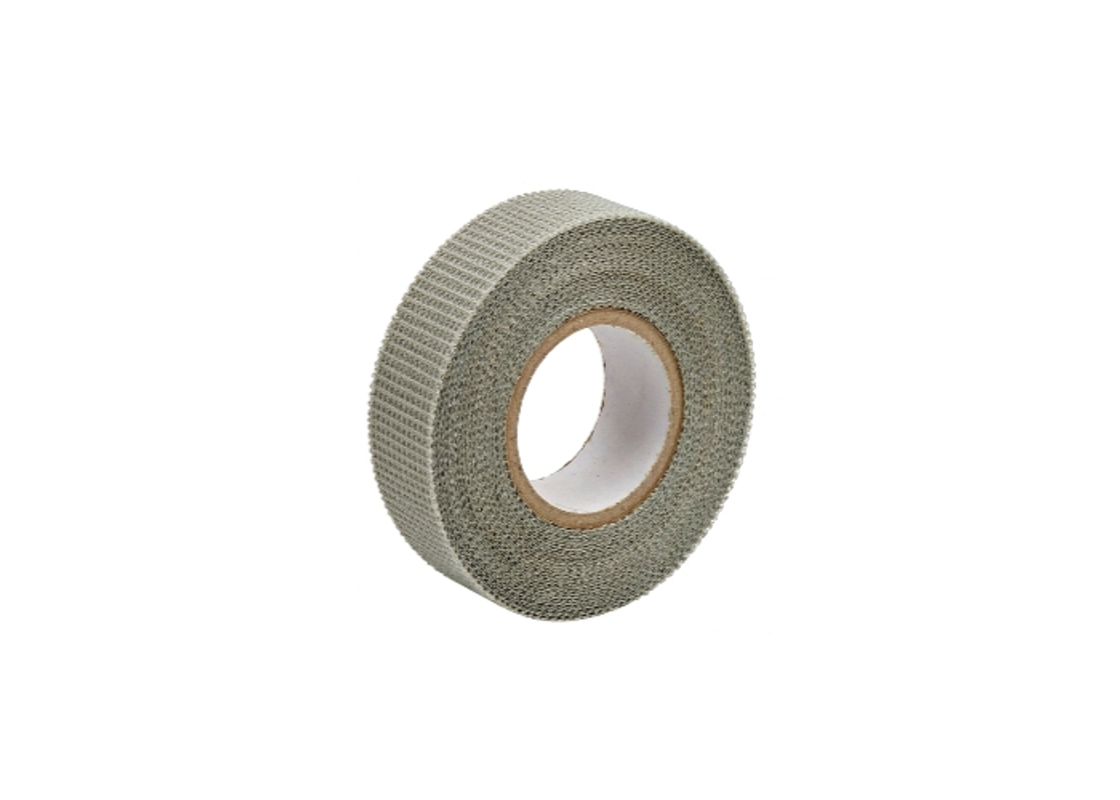

3M Scotch 24 | Copper Shielding Braid | 0.41mm Thickness | Silver
Product Description
Scotch Electrical Shielding Tape 24 is a 16 mil (0.406 mm) all-metal open-weave tinned copper braid tape for power cable insulation and high voltage splicing/terminating, offering corrosion resistance and high conformability. It is a non-adhesive shielding braid, secured by an overwrap tape, so 3M lists the adhesive type as non-adhesive while some marketing text refers to a rubber-resin adhesive.
Structure
|
Component |
Material / Construction |
|---|---|
| Backing (Carrier) | tinned copper open-weave mesh, 0.406 mm (16 mil) |
| Adhesive | none per 3M specification (non-adhesive braid, held in place by an overwrap) |
| Release Liner | none |
Datasheet
| Thickness 0.406 mm (16 mil) |
| Tensile strength 9.37 MPa |
| Elongation at break 70% |
| Temperature range -40 to 130 °C (some 3M pages state 0 to 105 °C) |
| RoHS 2011/65/EU |
