Product Details:
Payment & Shipping Terms:
|
| Name: | 3M Double Coated Tape GPT-020F | Backing: | PET |
|---|---|---|---|
| Adhesive: | Acrylic | Liner: | Yes |

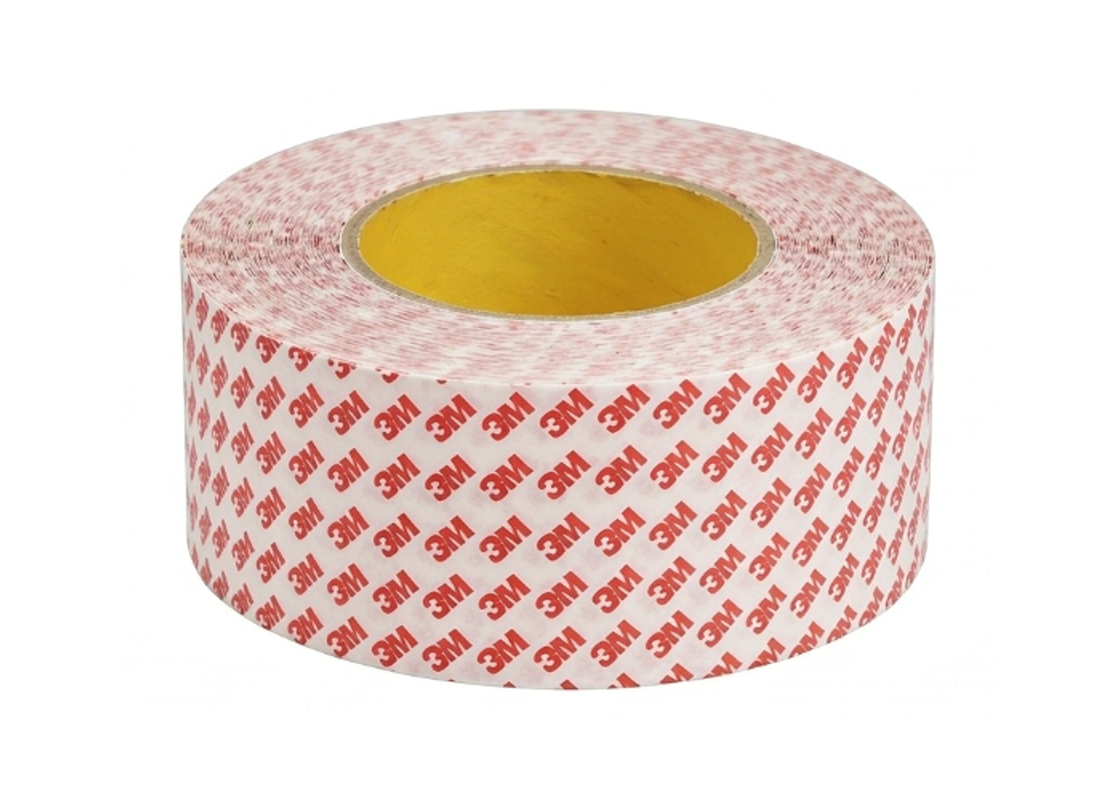

3M GPT-020F | Double Coated PET | 0.20mm Thickness | Transparent
Product Description
3M Double Coated Tape GPT-020F is an 8 mil (0.202 mm) double-sided tape with a modified acrylic adhesive on both sides of a thin PET carrier and a polypropylene film liner; a general-purpose (GPT) grade balancing high tack, shear and temperature resistance for bonding HSE and LSE substrates.
Structure
|
Component |
Material / Construction |
|---|---|
| Backing (Carrier) | PET film 0.012 mm (0.47 mil) |
| Adhesive | modified acrylic, 0.095 mm (3.75 mil) face side and 0.095 mm back side |
| Release Liner | biaxially oriented polypropylene film, 0.1 mm (3.9 mil), white with red 3M logo |
Datasheet
| Total thickness 0.202 mm (7.95 mil) |
| 180 °peel to steel 14.3 N/cm (20 min) rising to 17.1 N/cm (72 h), ABS 17.7 N/cm, PP 19.1 N/cm, PC 14.6 N/cm, glass 12.9 N/cm |
| Max 149 °C, min -40 °C |
| Static shear 1000 g |
| Shelf life 18 months |
