Product Details:
Payment & Shipping Terms:
|
| Name: | 3M 9731 | Adhesive: | Silicone And Acrylic |
|---|---|---|---|
| Color: | Transparent |

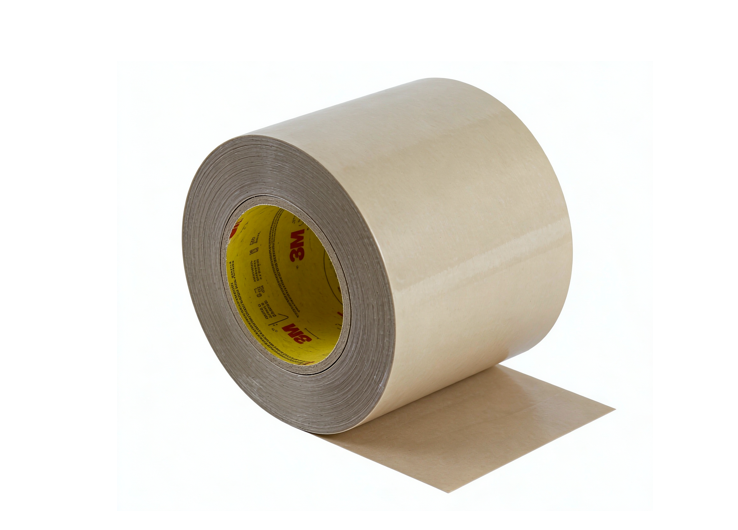

3M 9731 is a differential double-coated PET tape: clear polyester carrier with silicone PSA on the roll-outside and 3M™ Adhesive 350 high-performance acrylic on the roll-inside/working face; total without liner 0.14mm/5.5mil (PET 0.02mm/1mil + silicone 0.07mm/2.9mil + 350 acrylic 0.04mm/1.6mil). One side bonds silicone rubber/silicone parts/LSE plastics without primer; the other side uses 350 acrylic for metal, glass, ABS, PC, powder coat and oily surfaces. It is used for silicone gaskets, silicone foam, filters, small-part assembly, nameplates and electronic/automotive/aerospace dissimilar joints. Dual liner: clear PET 3mil on silicone side, 58# tan PCK 4.2mil on acrylic side; service −40 to 121°C, short-term about 177°C per TDS group, moderate solvent and UV resistance, stable for die-cutting/slitting.
|
Parameter |
Detail |
|---|---|
| Product | 3M Double Coated Tape 9731 |
| Construction | Clear PET carrier; silicone PSA one side, 350 high-performance acrylic PSA other side |
| Wind direction | Silicone adhesive side on outside of roll |
| Carrier material | Clear PET (polyester) |
| Carrier thickness | 0.02 mm / 1.0 mil |
| Silicone adhesive thickness | 0.07 mm / 2.9 mil |
| Acrylic adhesive thickness | 0.04 mm / 1.6 mil (Adhesive 350) |
| Total tape thickness without liner | 0.14 mm / 5.5 mil (ASTM D3652) |
| Density | 1.06 g/cm³ |
| Silicone-side liner | Clear PET; 3 mil; no print |
| Acrylic-side liner | Brown PCK; 58#; 4.2 mil / 0.17 mm |
| Color | Transparent |
