Filament Tape | Cross Glass Fiber | 0.15mm | Electrical Insulation Tape | For Oil Transformers

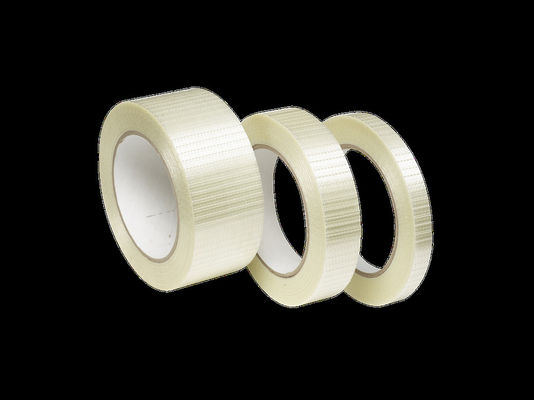

Large Image : Filament Tape | Cross Glass Fiber | 0.15mm | Electrical Insulation Tape | For Oil Transformers

Product Details:

Place of Origin:	China
Brand Name:	Aerchs
Certification:	ISO9001:2015
Model Number:	AHS-659

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiated
Price:	Negotiated
Packaging Details:	by carton then by pallet
Delivery Time:	within 2 weeks after payment received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	8000 rolls per month

Contact Now

Detailed Product Description

Name:	Cross Glass Fiber Filament Tape	Carrier:	PET Glass Fiber
Adhesive:	Acrylic	Thickness:	0.15mm
Color:	Clear	Temperature Resistance:	130℃
Highlight:	high voltage electrical insulating tape , electrical pvc insulation tape

Filament Tape| Cross Glass Fiber | 0.15mm | Electrical Insulation Tape | For Oil Transformers

Product Description

Cross Glass Fiber Filament Tape consist of polyester film reinforced with corss weave glass fiber. It is offereing the higher TACKY adhesive to adhere all components into an oil immersed transformers. The "mesh" or cross weave glass fibers reinforces the transversal mechnical strength of the tape.

Filament Tape | Cross Glass Fiber | 0.15mm | Electrical Insulation Tape | For Oil Transformers

Datasheet

Physical Characteristics	Standard Values
Carrier	PET Glass Fiber
Adhesive Type	Acrylic
Total Tape Thickness	0.15mm
Adhesion Strength	16N/25mm
Tensile Strength	950N/25mm
Elongation	3%
Temperature Resistance	130℃

Features

Extreme High Tack.
Good mechnical strength( both direction).
Chemical resistant adhesive.
Fast immediat bonding.

Applications

Mainly designed for all oil immersed transformers applications. Fixing the start or end of conductors , fixing all inulation papers and card boards, end coil strapping. Also suitable for electrical motors applications when a strong fixing is required.
