Aluminum Foil Tape | EMI/RFI Shielding | 0.05mm | Silver | With Conductive Adhesive

Large Image : Aluminum Foil Tape | EMI/RFI Shielding | 0.05mm | Silver | With Conductive Adhesive

Product Details:

Place of Origin:	China
Brand Name:	Aerchs
Certification:	IOS9001:2015
Model Number:	AHS-1170

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiated
Price:	Negotiated
Packaging Details:	by carton then by pallet
Delivery Time:	within 2 weeks after payment received
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	8000 rolls per month

Contact Now

Detailed Product Description

Name:	Aluminum Foil Shielding Tape	Carrier:	Aluminum Foil
Adhesive:	Conductive Acrylic	Thickness:	0.06mm/0.09mm
180° Peel Adhesion To Stainless Steel:	>15N /25mm	Temperature Resistance:	120℃
Highlight:	electromagnetic shielding tape , rf shielding tape

Aluminum Foil Tape | EMI/RFI Shielding | 0.05mm | Silver | With Conductive Adhesive

Product Description

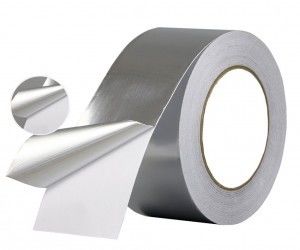

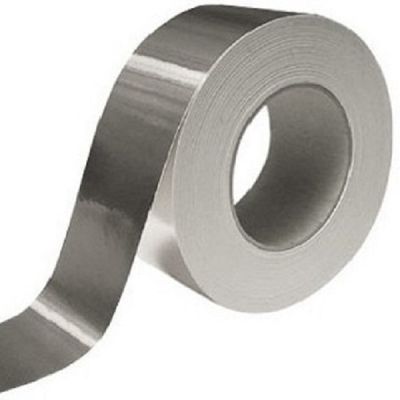

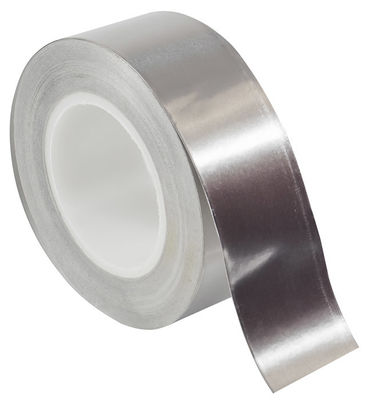

Aluminum Foil Shielding Tape consists of aluminum foil backing and an electrically conductive, pressure-sensitive acrylic adhesive. This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solder ability.

Aluminum Foil Tape | EMI/RFI Shielding | 0.05mm | Silver | With Conductive Adhesive

Datasheet

Carrier	Aluminum Foil
Adhesive	Acrylic
Total Tape Thickness	0.05mm
180° Peel Adhesion to Stainless Steel	>15N /25mm
Temperature Resistance	120℃
Holding Power	>48h/25℃/1kg
Voltage Resistance	>4 KV
Elongation	3%
Tensile Strength	40N/25mm

Features

Aluminum foil backing for good shielding effectiveness and converting (slitting and die cutting).
Conductive particles in the adhesive provides low contact resistance between the substrate and the backing to drain static charge.
Acrylic pressure-sensitive adhesive has good resistance to heat, oxidation, solvents and oils.
Removable liner makes it easy to handle and die cut complex shapes.
There are both standard and custom roll widths and lengths to meet a variety of application needs.

Applications

Aluminum Foil Tape is typically used as an EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials.
