3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding

China 3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding supplier
3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding supplier 3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding supplier 3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding supplier 3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding supplier

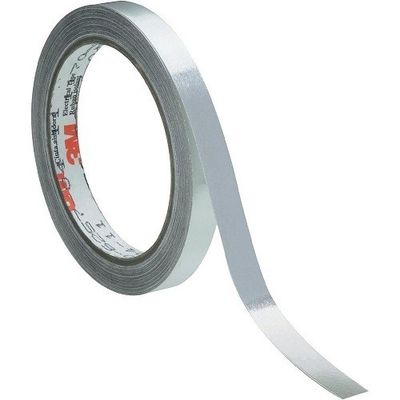

Large Image :  3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding

Product Details:

Brand Name: 3M
Certification: COC, COA,UL,CE, ROHS, SGS
Model Number: 3M 1170

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 3M 1170 Aluminum Foil Tape Standard packing
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Rolls
Contact Now
Detailed Product Description
Name: 3M 1170 Aluminum Foil Tape Application: EMI/RFI Shielding
Carrier: Aluminum Adhesive: Conductive Acrylic
Total Thickness: 3.2 Mils (0.081mm) Temperature: -40ºC To 130ºC

3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding

Product Description

The 3M aluminum foil tape 1170 is an acrylic pressure-sensitive adhesive tape, mainly used in conductive adhesive, used for electromagnetic interference shielding, grounding, electrostatic discharge, in accordance with the die cutting easily removable, easy to operate and die cutting. It has excellent welding performance.

Structures

3M 1170 Aluminum Foil Tape with Conductive Adhesives Die Cutting for EMI/RFI Shielding

Features

  • With thermal conductivity, electrical conductivity, chemical resistance.
  • Easily die-cut into a variety of special sizes and shapes to protect vulnerable parts from damage and heat insulation during painting operations.
  • In household appliances such as refrigerators, this tape can also provide excellent moisture resistance, with reflection and heat dissipation.

Datasheet

Color Silver Metallic
Adhesive Acrylic Conductive
Type of Backing Aluminum
Backing Thickness 2.0 mil (0.05mm)
Total Thickness (ASTM D1000) 3.2 mils (0.081mm)
Electrical Resistance 0.010 Ω/□
Flame Retardancy Pass
Breaking Strength (ASTM D3759) 20 lbs/in (35N/10mm)
Elongation -% at break 5%
Adhesion Strength (ASTM D3330) 35 oz/in (3.8N/10mm)
Temperature RangeShielding Effectiveness -40ºC to 130ºC>85 dB, 1MHz to 2 GHz

Application

  1. Conductive.
  2. Refrigerators, refrigerators and other refrigeration industries.
  3. Household appliances, such as solar energy, water heater, etc.
  4. Nameplate, printing, die cutting, electronic shielding
  5. Tubing wrap.
