Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension

China Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension supplier
Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension supplier Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension supplier Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension supplier Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension supplier

Large Image :  Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension

Product Details:

Place of Origin: China
Brand Name: Dupont
Certification: ROHS/UL/COC
Model Number: Nomex 410

Payment & Shipping Terms:

Minimum Order Quantity: >=100 PCS
Price: US$0.1/PCS (Based on Quantity)
Packaging Details: Customs Polybag With Strong Carton
Delivery Time: 5-7 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 PCS Per Month
Contact Now
Detailed Product Description
Material: Nomex 410 Insulating Paper Color: Milk White
Thickness: 0.13 Mm/0.18 Mm/0.25 Mm/0.38 Mm/0.51 Mm Etc Temperature: 200° C (300°F )
Application: Generators, Transformers, Electrical Equipment Etc

Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension



Product Description

Nomex 410 is a family of insulation papers that offer high inherent dielectric strength, mechanical toughness, flexibility and resilience. Nomex 410, the original form of Nomex paper, is widely used in a majority of electrical equipment applications. Available in 11 thicknesses ranging from 0.05 mm to 0.76 mm (2 mil to 30 mil), Nomex 410 is used in almost every known electrical sheet insulation application.



Typical Electrical Properties of DuPont Nomex 410
Property Nominal Thickness, mm (mil)
0.05(2)   0.08(3) 0.10(4) 0.13(5) 0.18(7) 0.25(10) 0.30(12) 0.38(15) 0.51(20) 0.61(24) 0.76(30)
Dielectric Strength AC Rapid rise, V/mil kV/mm

460

18

565

22

525

21

715

28

865
34
845
33
870
34
850
33
810
32
810
32
680
27
Full Wave Impulse, V/mil kV/mm

1000

39

1000

39

900

36

    1400      55 1400
55
1600
63
N/A
N/A
1400
55
1400
55
N/A
N/A
1250
49
Dielectric Constant at 60 Hz 1.6 1.6 1.8 2.4 2.7 2.7 2.9 3.2 3.4 3.7 3.7
Dissipation Factor at 60 Hz (x 10-³) 4 5 6 6 6 6 7 7 7 7 7



Features

1. Excellent mechanical characteristics

2. Heat stability

3. Chemical stability

4. Radiation resistance

5. Non-poisonous

6. Resistance to fire



Typical Mechanical Properties of DuPont Nomex 410
Property Nominal Thickness, mm (mil)
0.05(2) 0.08(3) 0.10(4) 0.13(5) 0.18(7) 0.25(10) 0.30(12) 0.38(15) 0.51(20) 0.61(24) 0.76(30)
Typical Thickness,
mm
mil
0.06
2.2
0.08
3.1
0.11
4.2
0.13
5.2
0.18
7.2
0.26
10.2
0.31
12.2
0.39
15.3
0.52
20.4
0.61
24.2
0.78
30.6
Basis Weight, g/m² 41 64 88 115 174 249 310 395 549 692 839
Tensile Strength, N/cm
MD
XD
43
19
68
34
93
49
141
71
227
116
296
161
380
185
462
252
610
374
728
500
816
592
Elongation, %
MD
XD
10
7
12
9
12
9
16
13
20
15
22
18
23
18
22
16
23
18
21
16
21
17
Initial Tear Strength, N
MD
XD
11
6
16
9
24
14
31
17
48
27
69
42
88
55
110
71
158
114
191
153
233
193
MD = Machine Direction; XD = Cross Direction

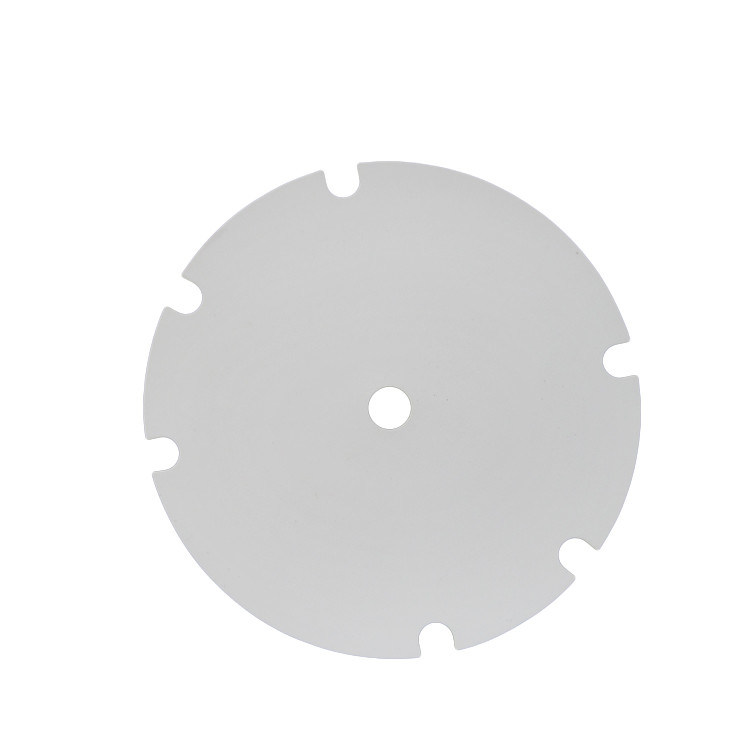

Product Pictures

Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension

Precision Die Cut Dupont Nomex 410 Insulating Paper With Customs Dimension
