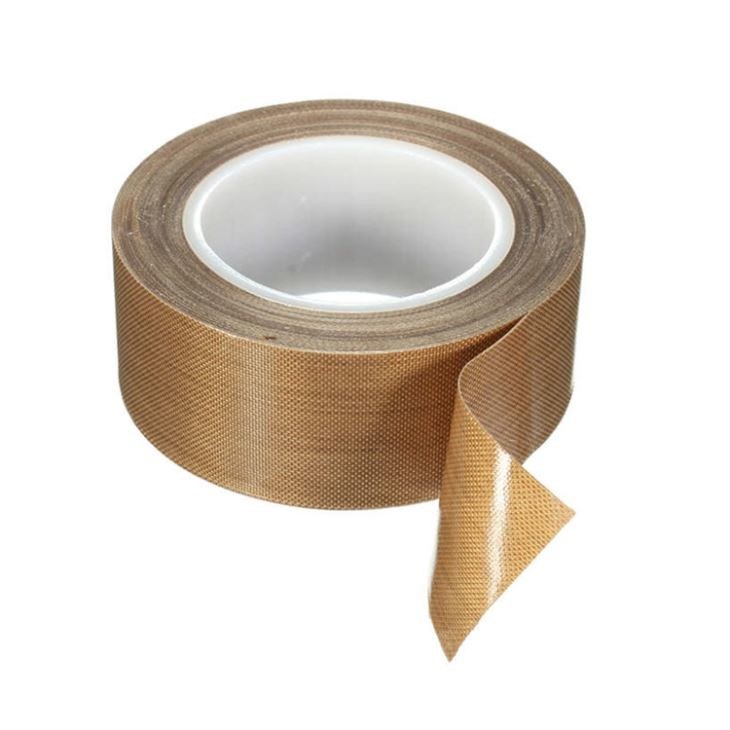

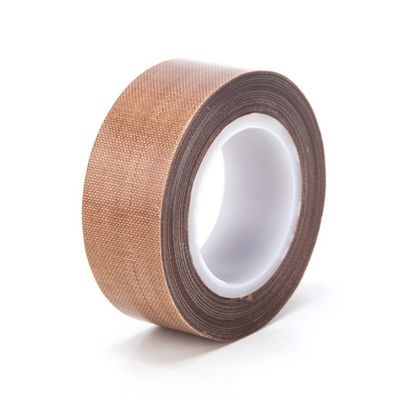

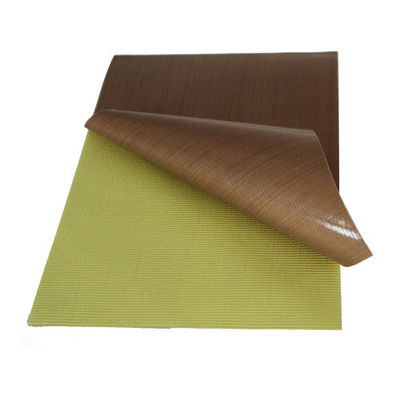

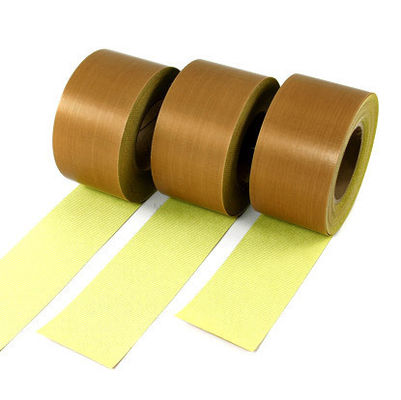

3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine

China 3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine supplier
3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine supplier 3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine supplier 3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine supplier 3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine supplier

Large Image :  3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine

Product Details:

Place of Origin: China
Brand Name: Aerchs
Certification: ISO9001:2015
Model Number: AHS-973

Payment & Shipping Terms:

Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: by carton then by pallet
Delivery Time: within 2 weeks after payment received
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000 rolls per month
Contact Now
Detailed Product Description
Name: PTFE Coated Fiberglass Tape Carrier: PTFE Coated Fiberglass
Adhesive: Silicone Thickness: 3mils/5mils/6mils
Width: 600mm Or Customized Length: 33m

3mils/5mils PTFE Coated Fiberglass Tape with Silicone Adhesive for Heat Sealing Machine



Product Description

Heat Resistance PTFE Coated Fiberglass Tape is using glass cloth as base material impregnated with PTFE film, single surface treated and coated with a silicone adhesive.

PTFE Coated Fiberglass Tape provide a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine



Product Detail

Physical Characteristics Standard Values
Carrier PTFE Fiber Glass cloth
Adhesive Type Silicone
Carrier Thickness 0.08±0.01mm
Total Thickness 0.05±0.01mm
Peel Adhesion to Steel 11.5N/40mm
Tensile Strength 295N/25mm
Voltage Resistance 1.5KV
Temperature Resistance 260℃(long-term) to 300℃(short term)
Color Brown/Black ESD



























Features

1. Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes.

2. Silicone adhesive offers high temperature performance and long aging.

3. Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear.



Application

• Easy-release, low friction surface on heat sealing and packaging equipment.
• Mold release surface in composite bonding.
• Lining conveying chutes, troughs and ducts.
• Covering rollers, drums, turnbars and formers on stitchers, binders and other process machinery.
• High temperature bundling.
• Barrier for the separation of dissimilar parts.

3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine



Our Advantage

Support various of die cutting by your specific demand.

Customized dimension is welcomed.
3mils/5mils PTFE Coated Fiberglass PTFE Film Tape with Silicone Adhesive for Heat Sealing Machine
