Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry

Certification
Good quality Polyimide Film Tape for sales
Good quality Polyimide Film Tape for sales
I want to say that your tape is very good. Thank you for all your suggestion, after sales service is also good.

—— Mr Benjamin

I'm Online Chat Now

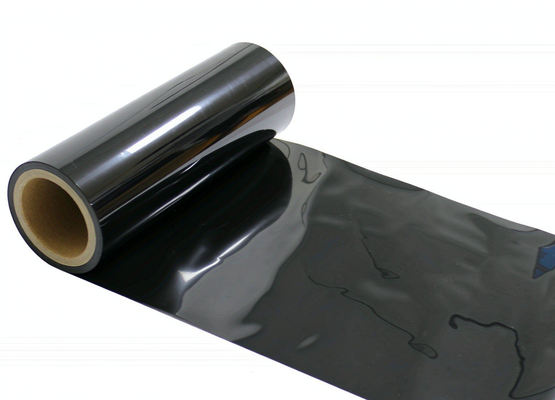

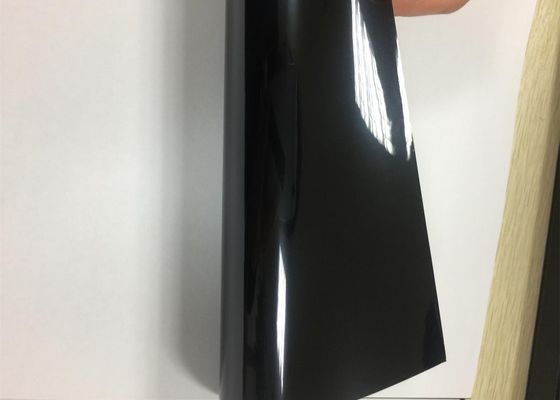

Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry

China Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry supplier
Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry supplier Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry supplier Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry supplier Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry supplier

Large Image :  Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry

Product Details:

Place of Origin: CN
Brand Name: Kingzom
Certification: ROHS ,SGS
Model Number: KZPIF080

Payment & Shipping Terms:

Minimum Order Quantity: 1 Rolls
Price: $0.01-$100.0/Piece
Packaging Details: Carton + Protective film
Delivery Time: 5-8 business days
Payment Terms: Western Union, Paypal , T/T, MoneyGram, D/A, D/P, L/C
Supply Ability: 100000 SQM/ Month
Contact Now
Detailed Product Description
Item: Black Polyimide Film Thick: 8um-100um
Width: 1040mm & Sillting Customized Desigh Temperature Resistant: <400 ℃
Color: Black Tensile Strength: TD ≥204Mpa ,MD ≥195Mpa
Length: 2000M Or Rewinding To Customized Certificate: RoHS , UL ,

Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry

Black polyimide film exhibits an excellent balance of physical, chemical,and electrical properties over a wide temperature range,with superior dimensional stability at elevated temperatures.


Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry


DATA SHEET
ItemTest SeriesStandard


1


Color



Amber

2Item NumberKZPIF0080
3Thickness8±1.6μm



4


Tensile Strength

MD≥195Mpa
TD≥204Mpa



5

Elongation BreakMD≥65%
TD≥62.5%
6Width1040mm
7Length2000m
8Contractibility rate150℃<1.0 400℃≤3.0
9Surface Resistivity200℃ ≥ 2.9×1014Ω
10Dielectric Relattive strength48-62HZ 3.5±0.4
11Dielectric loss coefficient48-62HZ≤4.0*10-3
12QC test Required

At least
Test1.2.3.4.5.6.8.9




FEATURE


  • Excellent Insulating Properties.
  • Strong adhesion and Good aging resistance.
  • Temperature resistance: 400 ℃.
  • If need  film with glue : Silicone Glue and Acrylic Glue available.
  • High voltage insulation.
  • Good solvent resistance.
  • Soft and proper and no residue after peeling off.

APPLICATION

  • Mechanical parts
  • Electronic parts
  • Electrical Insulation
  • Pressure sensitive tape
  • Fiber optics cable
  • Insulation blankets
  • Insulation tubing
  • Automotive diaphragms sensors and manifolds
  • Etching
  • Shims
  • PCB Masking

Black Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive IndustryBlack Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive IndustryBlack Polyimide Film Super Thin 8um Heat Masking Resistant PI Film For Automotive Industry

      Frequently Asked Question

      • Q:Get fast sampling ( free samples excluding freight ) ?
      • Available free sample sizes: 2mm to 150mm width X 33M length .
      • Please advise shipping infos & express account. If no express account will need pay express cost to supplier .
      • Email to supplier for sample specs + detailed contacts (address + postcode + contact person + phone no).
      • Quick Lead time: within 3 workdays.
      • Q:What is your MOQ
      • Sample Order are available .
      • Q:How can we assit you locate the tape you need ?
      • show us the datasheets pictures you have
      • Tell us your application
      • let kow quantity X size (width X length X thickness)
      • Then we recommend and offer best price to you.
      • Q:What certificates you have for your products?
      • We have some patents and ISO9001 and ISO2004 Certification and other certifications like CE,UL,SGS,RoHs, Reach etc.
      • Q:About shipment :
      • By EMS, DHL, FedEx, TNT, UPS or other express.
      • By our forwarding agent (by air or by sea).
      • By your own forwarding agent.
      • By domestic forwarding agents to any city in China.
      Why Choose Us


      We are using the best adhesive and offer professional for many years. The holding power is 30% more than normal one according to the lab test.

      • 1).4 own factories running ,which means we can provide the products as required. Especially Customized.
      • 2). more than 90+% clients want to cooperate with us again. Reorder from us.
      • 3).Our quality adhesive tape are SGS approved, and our quality management system fully complies with the ISO9001 standard.
      • 4).Tapesare produced by up-to-date production lines.
      • 5). Free samples are available most of the time.
      • 6) TRADE ASSURANCE to protect your payment & make sure on time delivery and quality.
      • 7). Your business relationship with us will be confidential to any third party.
      • 8).short lead time & 100% ensure the timely delivery.
