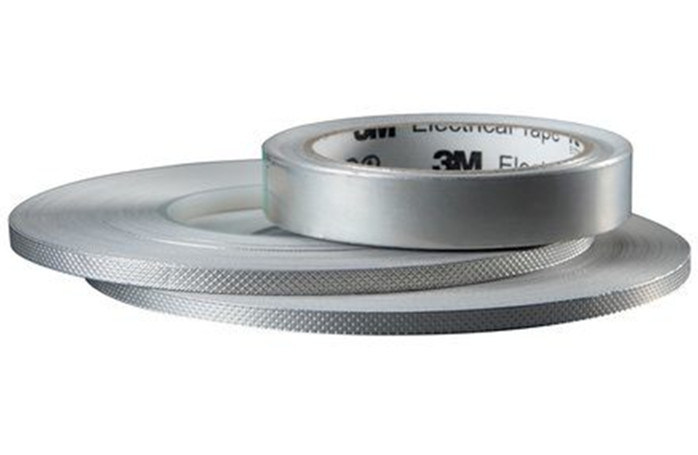

3M 3007 Charge - Collection Solar Tape Tin Plated Copper Foil Tape

China 3M 3007 Charge - Collection Solar Tape Tin Plated Copper Foil Tape supplier

Large Image :  3M 3007 Charge - Collection Solar Tape Tin Plated Copper Foil Tape

Product Details:

Place of Origin: CN
Brand Name: 3M
Certification: UL
Model Number: 3007

Payment & Shipping Terms:

Minimum Order Quantity: 100rolls
Price: USD
Packaging Details: According to customer request
Delivery Time: 10K rolls
Payment Terms: TT, PAYPAL
Contact Now
Detailed Product Description
Material: Charge-Collection Solar Tape Tin-plated Copper Foil Tape Color: Sliver
Thick: 0.12mm Adhesive: Acrylic
Temperature: 160°C Useing: Automation Equipment
High Light:

heat resistant tape

,

fire resistant tape

3M 3007 Charge-Collection Solar Tape Tin-plated copper foil tape

Description :
3M Charge-Collection Solar Tapes consist of tin-plated copper foil with acrylic
based, pressure sensitive adhesives used in thin film solar applications requiring zaxis conductivity.
These tapes can be applied at high speeds using automation equipment.



This single-coated foil tape features:
Excellent conductivity
Deadsoft copper with corrosion resistant tin-plating
Excellent high-temperature adhesive shear properties
PET release liner



Datasheet :

Properties Typical Values
Conductive Adhesive 0.9 mil (0.023 mm)Acrylic
Backing Thickness 1.4 mil (0.035 mm) Tin-Plated Copper
Adhesive   Acrylic
Total Thickness(Backings and Adhesives) 0.058 mm
Release Liner 1.3 mil (0.050 mm)1-side si-coated PET
Color Silver
Temperature Process (short term vacuum lamination) 320°F (160°C
Adhesion to Steel 1.61 lb/in (0.28 N/mm)
Liner Release 11 g/in
Breaking Strength 52 lb/in (91 N/cm)
Electrical resistance through adhesive <0.002 ohm
Sheld life 24 Months from manufacture
Standard width 4mm,5.84mm,194mm

Application:
3M Charge-Collection Solar Tape 3007 is designed
for use as a charge collector or bus within a thin-film solar panel. The adhesive was formulated to
undergo the vacuum lamination process typically used in the manufacture of solar panels.

3M 3007 Charge - Collection Solar Tape Tin Plated Copper Foil Tape
