3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry

China 3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry supplier
3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry supplier 3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry supplier 3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry supplier

Large Image :  3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry

Product Details:

Place of Origin: China
Brand Name: 3M
Certification: UL, SGS
Model Number: 1181

Payment & Shipping Terms:

Minimum Order Quantity: 1 roll
Price: USD 0.3 ~ 53.12 per roll
Packaging Details: Carton Packing
Delivery Time: 3~ 10 days
Payment Terms: L/C, T/T, , Western Union, Paypal
Supply Ability: 300,000 rolls
Contact Now
Detailed Product Description
Product Name: 3M 1181 Conductive Copper Foil Tape For EMI RFI Shield Of Electronics Industry Thickness: 0.06mm
Width: Customized Length: Customized
Color: CCopper Adhesive TypeA: Acrylic
Sample: Free Sample Temperature: -40℃ To 130℃

3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry



Product Description

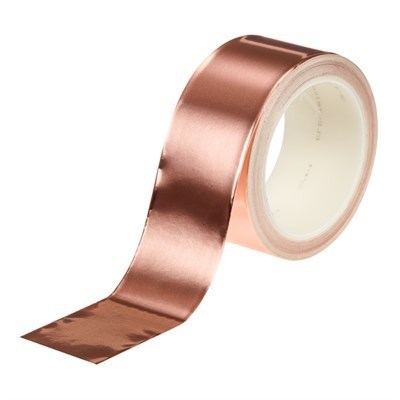

3MCopper Foil Tape 1181 consists of a 1-ounce rolled copper foil backing and an electrically conductive, pressure-sensitive acrylic adhesive. This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solder ability.

3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry



Construction

3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry

Specification

Property Value
Color Copper
Thickness 0.06mm
Electrical Resistance 0.005 Ω
Breaking Strength 44N/10mm
Adhesion Strength 3.8N/10mm
Elongation 5%



Application

EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials.

3M 1181 Conductive Copper Foil Tape for EMI RFI shield of electronics industry
