3M F9469PC | Kiss Cut | Adhesive Transfer | for Bonding PCB to Heat Sink

Large Image : 3M F9469PC | Kiss Cut | Adhesive Transfer | for Bonding PCB to Heat Sink

Product Details:

Brand Name:	3M
Certification:	COC, COA,UL,CE, ROHS, SGS
Model Number:	3M F9469PC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	3M F9469PC standard packing
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	1000 Rolls

Contact Now

Detailed Product Description

Name:	3M F9469PC Adhesive Transfer Tape	Application:	Bonding PCB To Heat Sink
Adhesive:	Acrylic	Thickness:	0.05mm
Size:	1524MM55M0.05MM Or 1219MM55M0.05MM	Temperature:	Long 149°C, Short 260 °C
Highlight:	die cut tape , die cut double sided tape

3M F9469PC | Kiss Cut | Adhesive Transfer | for Bonding PCB to Heat Sink

Product Description

3M adhesive transfer tapes F9469PC utilize the 3M high performance acrylic adhesive 100MP, which has excellent long term holding power with much higher adhesion strength than typical pressure sensitive adhesive systems. These 3M Adhesive Transfer Tapes are transparent and are ideal for use in many interior and exterior industrial applications to replace rivets, spot welds, liquid adhesives, and other permanent fasteners. In addition, it can make the design more flexible. At the same time, because the construction is convenient and quick, the work efficiency is greatly improved, which is a breakthrough of adhesive technology.
The thickness is 0.05mm, the master volume is 1524mm*55m* 0.05mm and 1219mm*55m, and the size is customized. It usually be used in vehicle manufacturing industry, electronics industry, crafts industry, etc.

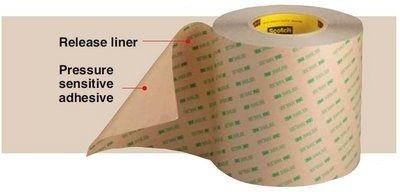

Structure

3M F9469PC | Kiss Cut | Adhesive Transfer | for Bonding PCB to Heat Sink

Features

High performance acrylic adhesive.
Short term temperature tolerance of up to 500 °F (260 °C).
Operating temperature tolerance of up to 300°F (149°C).
Conforms to a variety of indoor and outdoor applications.
Durable adhesive is chemical, UV and solvent resistant.
Ease of application increases productivity.
Strong physical and chemical stability.
Seal off damp gas.

Datasheet

Project	Test method	Test value	Unit
Thermal expansivity		770*10^-6	mm/mm/℃
Thermal conductivity	ASTM C-177	0.0016	W/CM℃
Insulation resistance	mil-l-46058C	1*10^10	Ω
Dielectric strength	ASTM D149-97	1200	v/mil
Insulation resistance	ASTM -1000	1*10^6	MΩ/ in.²
Density		0.98	g/ cm³
Stainless steel peel strength.	ASTM D3330	120	N/10cm
Solvent resistance		good
UV-Stability		good
Temperature resistance	Long term	149	℃
	Short term	260	℃

Applications

Replacing rivets, spot welds, liquid adhesives and other permanent fasteners.
Bonding decorative metal trim.
Bonding flexible printed circuits (FPC) to aluminum stiffener or heat sinks.
Panel to frame bonding.
The 3M9460 double-sided adhesive meets the requirements of ROHS and halogen in environmental protection, so it is widely used in the adhesion of flexible PCB fins and plastic.
