Product Details:
Payment & Shipping Terms:
|

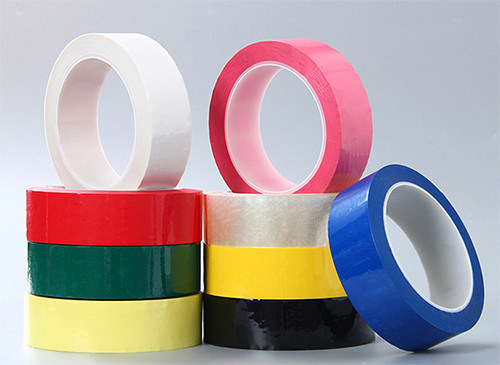

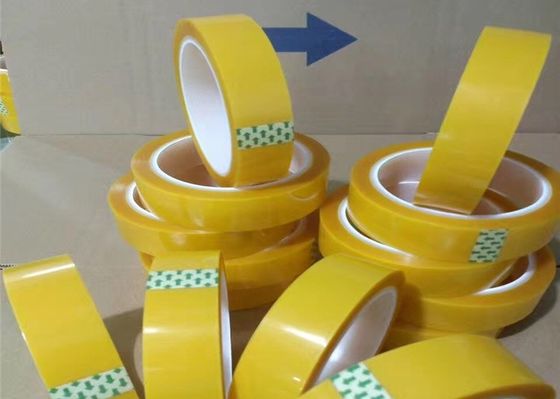

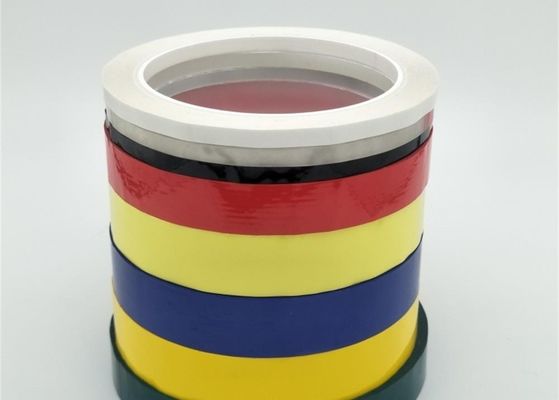

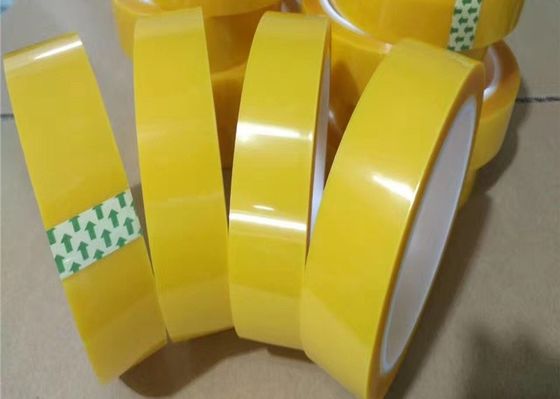

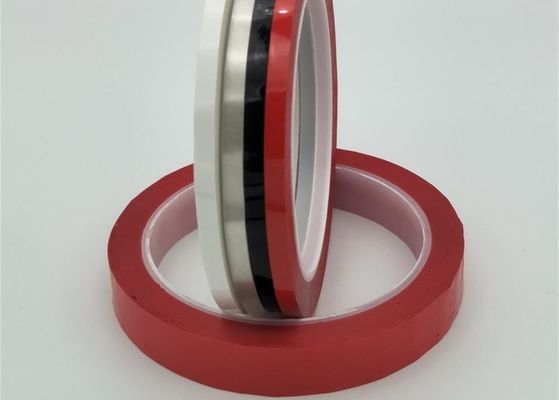

| Item: | Mylar Tape Polyester Film Insulation Tape | Thick: | 0.063mm |
|---|---|---|---|
| Width: | 1040mm & Sillting Customized Desigh | Temperature Resistant: | <120 ℃ |
| Color: | Black,white ,red ,yellow,blue ,green,transparent Mylar Tape | Length: | 2000M Or Rewinding To Customized |
| Certificate: | RoHS , UL , | Application: | Interlaminar Insulation Of Transformers, Battery |
| Highlight: | high voltage electrical insulating tape,electrical pvc insulation tape |
||
Mylar tape are base on polyester film coated with acrylic adhesive that is imported specially.
|
Physical Characteristics |
Standard Values |
|
Carrier |
PET Film |
|
Adhesive Type |
Acrylic |
|
Total Tape Thickness |
0.063mm |
|
180° Peel Adhesion to Stainless Steel |
35oz/in – 10N/25mm |
|
Tape Color |
Ten colors |
|
Dielectric Strength Breakdown |
8KV |
|
Temperature Resistance |
-60~120°C |
|
Holding Power |
>20h/25℃/1kg |
|
Elongation |
≥70% |
|
Pull Strength Power |
≥44 N/10mm |
|
Insulation Resistance |
>1x1012 |
Offers superior electrical insulation.
Offers superior dimension stability.
Offers superior heat resistance.
Narrow width processing is available.
Available in long lengths.
Good processability.
Transformer
Motor
Components bandaging
Line bundle
Battery bandaging
Fixed line
Can be used for desk positioning
