3M 3011 and 3011B Charge Collection Solar Tape use for automation equipment

China 3M 3011 and 3011B Charge Collection Solar Tape use for  automation equipment supplier
3M 3011 and 3011B Charge Collection Solar Tape use for  automation equipment supplier 3M 3011 and 3011B Charge Collection Solar Tape use for  automation equipment supplier

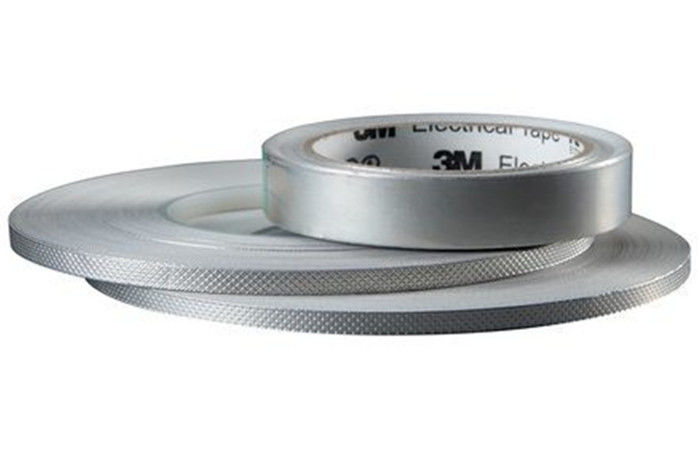

Large Image :  3M 3011 and 3011B Charge Collection Solar Tape use for automation equipment

Product Details:

Place of Origin: CN
Brand Name: 3M
Certification: Rohs
Model Number: 3011/3011B

Payment & Shipping Terms:

Minimum Order Quantity: 100 rolls
Price: USD15/Roll
Packaging Details: According to customer request
Delivery Time: 10-12 working days
Payment Terms: T/T ,Paypal, Western Union
Supply Ability: 20K Rolls
Contact Now
Detailed Product Description
Material: Tin-plated Copper Foil With Acrylic Application: Automation Equipment
Thick: 0.12mm Temperature: 160°C
Color: Sliver Adhesion To Steel: 1.61 Lb/in (0.28 N/mm)
Breaking Strength: 52 Lb/in (91 N/cm)

3M 3011 and 3011B Charge-Collection Solar Tape use for  automation equipment

Description :
3M Charge-Collection Solar Tapes consist of tin-plated copper foil with acrylic
based, pressure sensitive adhesives used in thin film solar applications requiring zaxis conductivity.
These tapes can be applied at high speeds using automation equipment.



This single-coated foil tape features:
Excellent conductivity
Deadsoft copper with corrosion resistant tin-plating
Excellent high-temperature adhesive shear properties
PET release liner


Datasheet :

Properties Typical Values
Conductive Adhesive 0.9 mil (0.023 mm)Acrylic
Backing Thickness 1.4 mil (0.035 mm) Tin-Plated Copper
Adhesive  1.5 mil (0.038 mm) Acrylic
Backing  1.0 mil (0.025 mm)
Total Thickness(Backings and Adhesives) 4.8 mil (0.122 mm)
Release Liner 1.3 mil (0.050 mm)1-side si-coated PET
Color Silver (3011)/Black (3011B)
Temperature Process (short term vacuum lamination) 320°F (160°C
Adhesion to Steel 1.61 lb/in (0.28 N/mm)
Liner Release 11 g/in
Breaking Strength 52 lb/in (91 N/cm)
Electrical resistance through adhesive <0.002 ohm
Sheld life 24 Months from manufacture
Standard width 4mm,5.84mm,194mm
Application:
3M Charge-Collection Solar Tape 3011 and 3011B
are designed for use as a charge collector or
bus within a thin-film solar module. 3M ChargeCollection
Tape 3011B is designed for applications
that require the bus on the front side of the
module. The adhesive was formulated to undergo
the vacuum lamination process typically used in
the manufacture of solar modules.

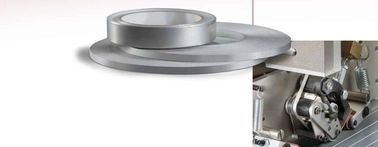

3M 3011 and 3011B Charge Collection Solar Tape use for  automation equipment







FAQ:

1: Q: Are you a factory or trading company? Are you a factory or trading company?

We are a factory. We are manufactory more than 22 years experiences in Insulation material industry.



2: Q: Which certification do you have?. Q: Which certification do you have?
A:Our products passed ISO9001-2008,Rohs,SGS certification,you can enter European,American market favorable.

3.

3 : Q: How can I get some samples? Q: How can I get some samples?

A: For the test sample we can offer you free, but you need pay for the express fee. We also can accept small order at the first cooperation and make production after you paying for us.
