Product Details:
Payment & Shipping Terms:
|
| Product Name: | Nitto 903ul High Temperature Skived PTFE PTFE Film Tape With Silicone Adhesive | Brand: | Nitto |
|---|---|---|---|
| Thickness: | 0.08 Mm, 0.13 Mm, 0.18 Mm | Width: | Customized |
| Length: | Customized | Adhesive Type: | Pressure-Sensitive Silicone Adhesive |
| Color: | Gray | Temperature Resist: | 260℃ ~ 300℃ |
| Highlight: | high temp teflon tape,heat resistant teflon tape |
||

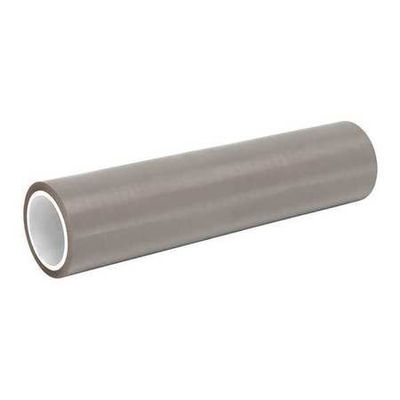

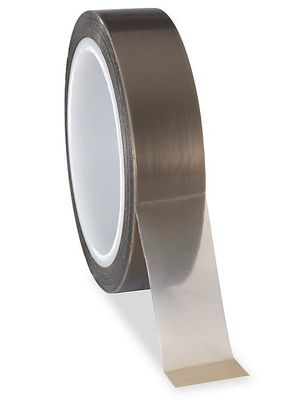

Nitto 903ul High Temperature Skived PTFE PTFE Film Tape with Silicone Adhesive
Product Description

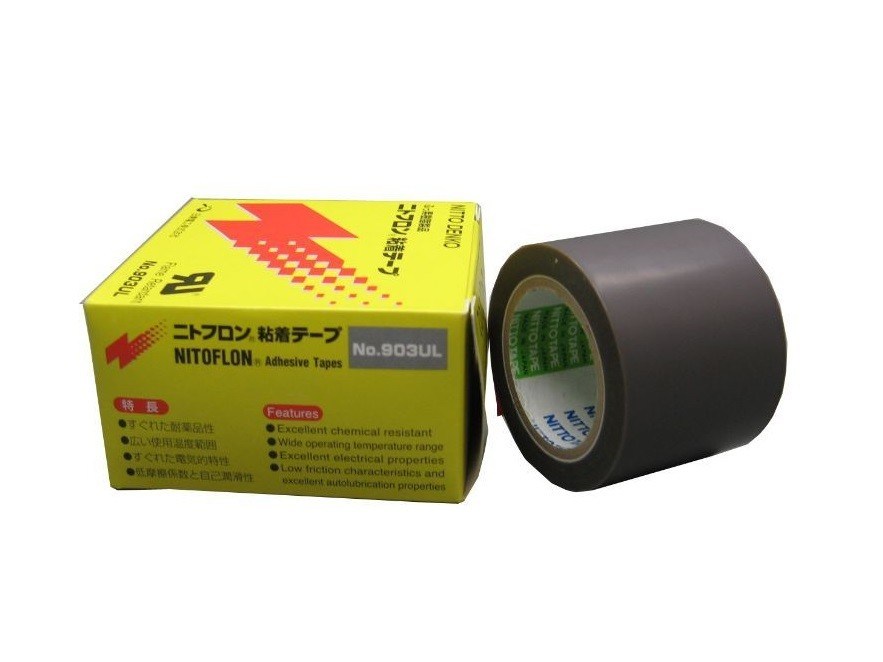

Heat-resistant adhesive tape NITOFLON NO.903UL consisting of PTFE(polytetrafluoroethylene) film and silicone adhesive layer.
Product Construction
Specifications
| Properties | 0.08mm | 0.13mm | 0.18mm | 0.23mm |
| Tensile Strength | 55N/19mm | 93N/19mm | 160N/19mm | 210N/19mm |
| Elongation | 180% | 220% | 220% | 220% |
| Peeling Strength | 5.6N/19mm | 7.1N/19mm | 7.4N/19mm | 8.7N/19mm |
| Unwinding Force | 4.4N/19mm | 5.8N/19mm | 7.1N/19m | 8.9N/19mm |
| Breakdown voltage | 8KV | 11KV | 14KV | 15KV |
| Surface resistivity | 10^16 Ω | 10^16 Ω | 10^16 Ω | 10^16 Ω |
| Volume resistivity | 10^15 Ω·cm | 10^15 Ω·cm | 10^15 Ω·cm | 10^15 Ω·cm |
| Temperature resist | 260℃ | 260℃ | 260℃ | 260℃ |
Features
Applications
