Product Details:
Payment & Shipping Terms:
|
| Name: | EMI Copper Foil Shielding Tape | Carrier: | Copper |
|---|---|---|---|
| Adhesive: | Conductive Acrylic | Thickness: | 0.06mm/0.09mm |
| Temperature Resistance: | 80℃~120℃ | Adhesive Surface Resistance: | ≤100 MΩ |
| Highlight: | electromagnetic shielding tape,rf shielding tape |
||
Product Description

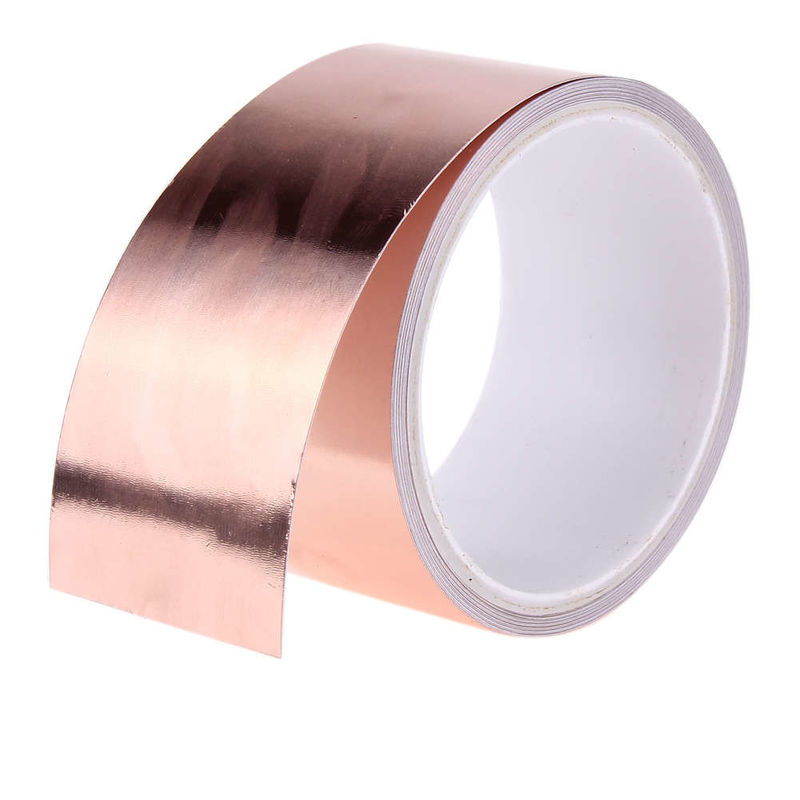

EMI Copper Foil Shielding Tape consists of a 1-ounce rolled copper foil backing and an electrically conductive, pressure-sensitive acrylic adhesive. This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solder ability.
Product Detail
| Physical Characteristics | Standard Values |
| Carrier | 99.9% Copper foil |
| Adhesive Type | Conductive acrylic adhesive |
| Total Thickness | 0.10mm |
| Carrier Thickness | 0.05mm |
| Release Liner | White paper |
| Peel Adhesion to Stainless Steel | >11.76N/inch |
| Tape Color | Copper color |
| Holding Power( 1000grams at 22℃) | 12H |
| Adhesive Surface Resistance | ≤100 mΩ |
| Temperature Resistance | 80℃~120℃ |
Features
1. Strong adhesion.
2. Good conductivity.
3. Excellent shielding performance.
4. Easy die-cutting.
Application
Our Advantage
Support various of die cutting by your specific demand.
