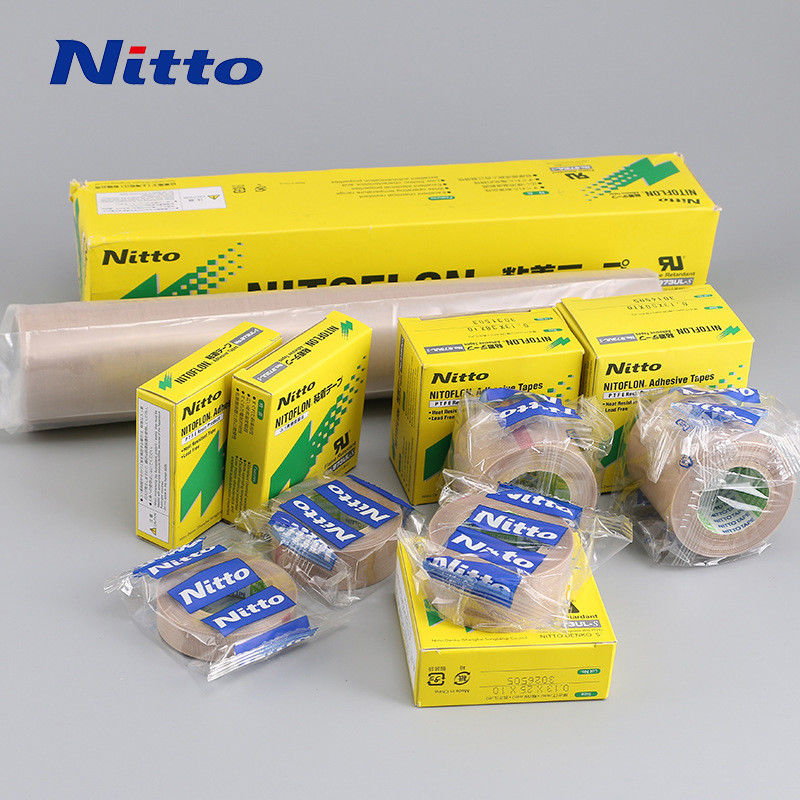

Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S

China Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier
Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S supplier

Large Image :  Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S

Product Details:

Place of Origin: Shanghai, China
Brand Name: Nitto
Certification: SGS, MSDS, UL
Model Number: 973UL-S

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export standard packing for Nitto 973UL-S
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000
Contact Now
Detailed Product Description
Name: Nitto 973UL-S Application: For Heat-resistant Masking
Adhesive: Silicone Color: Brown
Temperature Range: -60~260℃ Type: NITTO DENKO
Width: 13/19/25/38/50/300mm
High Light:

fire resistant tape

,

high temp foam tape

Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S



Product Description

NITTO DENKO high temperature PTFE tape is glass cloth base material impregnated with polytetrafluoroethylene (PTFE) dispersion then sintered. Single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength. Excellent heat resistance, releasing property and mechanical strength. Contribution to the heat-resistant releasing of heat sealing equipments.



Structure

Nitto Denko PTFE Silicone Adhesive Tape NITOFLON 973UL-S

Features

  • UL510 certified.
  • Environment-friendly and conforms to Notification No.20 of the Ministry of Health, Labor and Welfare.
  • Superior mold-releasing and sliding properties.
  • Good holding property at elevated temperatures and dimensional stability.
  • The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.



Applications

  • For heat-resistant masking.
  • For heat-sealing.
  • For heat-resistant electrical insulation.



Data sheet

Item Unit No.973UL-S Test Method
Thickness mm 0.13

Compatible with JIS

C 2107

Tensile strength N/19mm 240
Adhesive strength
25°C N/19mm 6.8
100°C 3.2
150°C 2.2
Unwinding force N/19mm 5.9
Temperature range °C -60~260 -
